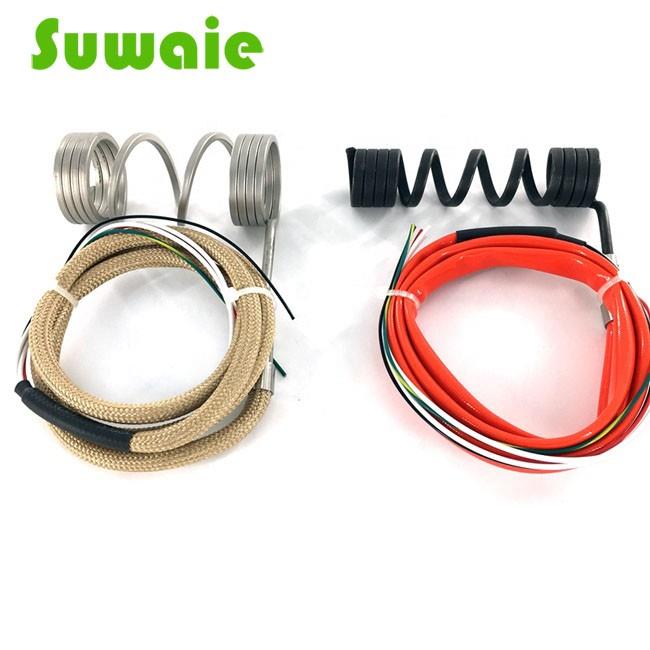

Mold Heater
Introduction
The coil type hot runner heater has various forms such as a circular section and a square section as well as a flat section. The outer surface is sandblasted and can be equipped with a K-type, J-type or E-type temperature-controlled thermocouple. SIndustrial Electric Hot Runner Coil Heater are widely used in hot runner plastic molds, blow molding machines, extruders and hot nozzles (spoon sleeves and nozzles).
Technical Specification and Tolerance:
Sectional area | 3x3,4.2x2.2,4x2,4x2.7,4x2.5 3.3 x 3.3 3.5 x 3.5 4 x4,2.2x1.3 |
Minimum ID | 8mm |
Sheath Material | SS304,SS310.sus321 |
Insulation Material | High Pure MgO |
Resistance Wire | Cr20Ni80 |
Maximum Sheath Temperature | 700°C |
Die Electrical Strength | 800V A/C |
Insulation | > 5 0M ohm |
Dimensional Tolerance | Coil I.D + 0.1 to 0.2mm// Coil Length + 1mm |
Wattage Tolerance | + 10% (+ 5% Available Upon Request) |
Voltage | 12V,24V,36V,110V,120V,220V230V,240V,380V |
Wattage | 70W~1000W |
Build-in thermocouple power | without or with J/K/E thermocouple |
Sheath's length | 500/1000/1200/1500/2000mm |
Available sheath | nylon,metal braided,fiber glass ,silicone wire, kevlar,teflon wire. |
Sheath's color | standard is black,other color is also available |
Connector' color | silver or fully black |
Applications of Hot Runner Coil Heater:
1. Caustic Cyanide used in gold processing
2.Caustic solutions Detergent
3.Sterilizing equipment
4.Plastic processing&packaging machinery
5.Ovens&dryers
6.Dies&Tools
7.Water& Oil heating appliances
8.Vending machines
9.Medical equipmentstailed information about what you need.
Order Guider
1.Cross Section
2.Circles / length/ diameter
3.Voltage
4.Wattage
5.Quantity
Coil Heater products picture show
Coil Heater Process show
Hot Runner Mold Heater Test room show
Packing and shipment ways
Our Advantage:
1.Excellent Purchasing Service
Since we have many resources of different ranges of heating element raw material factories, we know their quality level and price level. We can choose the most suitable supplier for customers according to their request.
2. High Quality Products offered
Most of products are from our long-term suppliers. They have been supplying the goods for us for more than 20 years; we can control the quality and price. So the issue for quality is not a problem. Even if the products have met the function problem, we can afford all the consequences. We will never hurt the customer's interests.
3. Rich Factory Resources & heater Marketing Suggestion
After more than 12 years experience accumulated in this filed, we have collected valuable resources of manufacturers and distributors. We are not only able to supply high quality goods; also we can recommend the hot sale products to customers according to different market needs. We help customer save money, but help them earn more money.
4. Perfect After-sale Service
According to our company's rule, we support one-year quality guarantee after you receive the goods. During this time, if you meet any quality problems, please contact with us, we can provide you with any replacement. The premise is non-human damage.
FAQ
1.
Q: What's the Payment method?
A: Western union, T/T totally or 50% deposit before production, the balance before delivery. We suggest you transfer the full values at one time. Cause there is bank process fee, it would be a lot of money if you make twice transfer.
2.
Q: Why is your price a bit higher than other Chinese suppliers?
A: We are focusing on manufacuturing high quality performance products in order to establish a long term and friendly cooperation with all customers.Our price maybe not the lowest, but our cost performance is the highest.
3.
Q: Where are the main markets for sales? A: Mainland China, UK, Thailand, Turkey, Canada, Mexico, Brazil, Argentina, Chile, India, Vietnam, Colombia, Malaysia, Australia, etc.
Shenzhen Suwaie Technology Co., Ltd. Focus on the production of Mold Heater. Our company has professional equipment and engineers to provide the production and service of Mold Heater.
