Spring Heating Element
Introduction
Micro coil heater principle is that when a thicker metal is in an alternating magnetic field, current is generated due to electromagnetic induction. When a thicker metal produces an electric current, the current will form a spiral flow path inside the metal, so that the heat generated by the current flow is absorbed by the metal itself, which causes the metal to heat up quickly. The device is an energy-saving device for preheating or secondary heating of fuel oil and a plastic melting channel for constant temperature heating. It is installed in front of the combustion device to warm the fuel oil before combustion, so that it is at a high temperature (105 ° C) At -150 ° C) to reduce the viscosity of the fuel oil, promote the role of full atomization combustion, and ultimately achieve the purpose of energy conservation. It is widely used in the pre-heating or secondary heating of heavy oil, asphalt, oil and other fuel oils and rubber and plastics manufacturing.
Specification
tube section | 2.2x4.2mm3x3mm3.4x3.4mm3.5x3.5m4x4mm |
Heating coil ID | 10mm~38mm |
heater coil length | 40mm~200mm |
mini heating coil Voltage | 220V~380V |
micro electric heaters power | 200W~3000W |
Build-in thermocouple | With or without J/K thermocouple |
small heating coil Lead wire | 500/1000/1200/1500/2000mm |
micro coil heater Standard Sizes
Cross Section | Total Length | T/C | WATT/VOLT | Lead Wire |
2,2x4.2 | 300/250mm | J or K | 195W x 230V | 1000mm |
2,2x4.2 | 330/280mm | J or K | 215W x 230V | 1000mm |
2,2x4.2 | 385/335mm | J or K | 240W x 230V | 1000mm |
2,2x4.2 | 450/400mm | J or K | 300W x 230V | 1000mm |
2,2x4.2 | 510/460mm | J or K | 350W x 230V | 1000mm |
2,2x4.2 | 570/520mm | J or K | 400W x 230V | 1000mm |
2,2x4.2 | 650/600mm | J or K | 460W x 230V | 1000mm |
2,2x4.2 | 750/700mm | J or K | 530W x 230V | 1000mm |
2,2x4.2 | 850/800mm | J or K | 610W x 230V | 1000mm |
2,2x4.2 | 950/900mm | J or K | 690W x 230V | 1000mm |
2,2x4.2 | 1160/1110mm | J or K | 850W x 230V | 1000mm |
2,2x4.2 | 1360/1310mm | J or K | 950W x 230V | 1000mm |
2,2x4.2 | 1600/1550mm | J or K | 1100W x 230V | 1000mm |
2,2x4.2 | 1850/1800mm | J or K | 1200W x 230V | 1000mm |
2,2x4.2 | 2300/2250mm | J or K | 1300W x 230V | 1000mm |
2,2x4.2 | 2550/2500mm | J or K | 1500W x 230V | 1000mm |
Order Guider
1.Cross Section
2.Circles / length/ diameter
3.Voltage
4.Wattage
5.Quantity

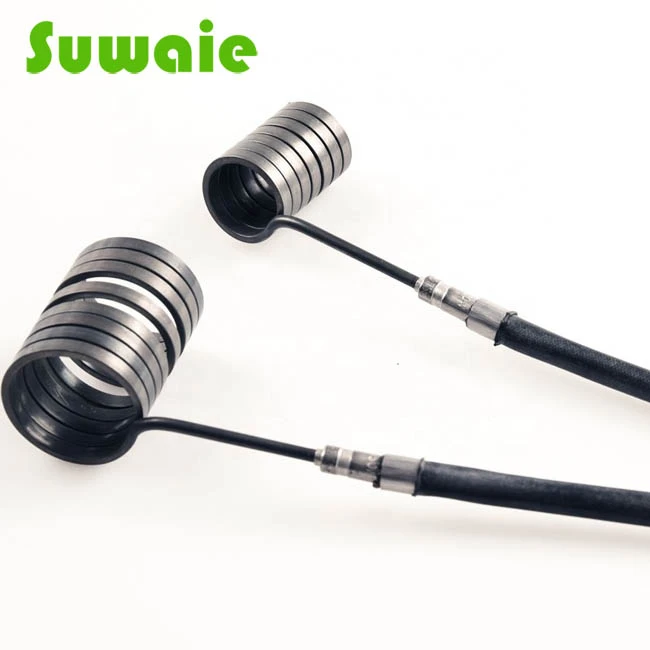

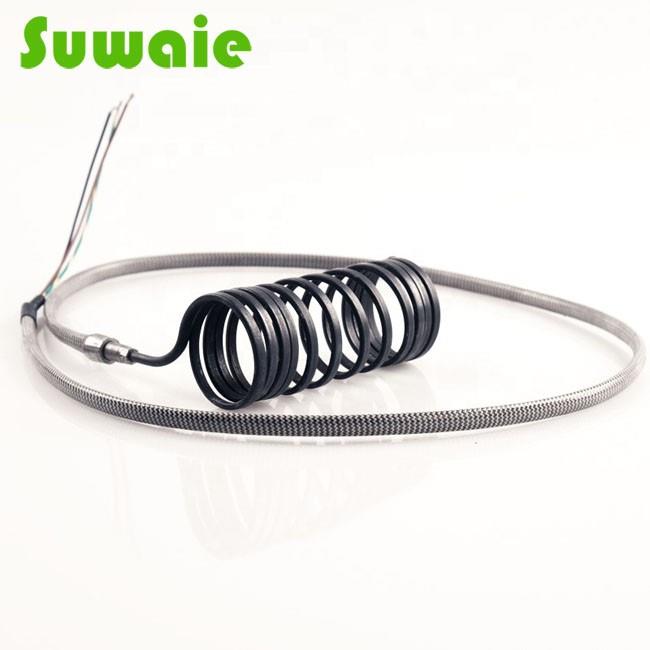

Coil Heater products picture show
Coil Heater Process show
Hot Runner Mold Heater Test room show
Packing and shipment ways
Our Services From receipt of customer order, our experienced customer service representatives process orders into our computer system for scheduled ship dates. Each customer order is analyzed to insure accuracy and customer delivery in a fast accurate manner.
All finished products are 100% tested on critical dimensions,forwarded to our packaging department for the final step in production.
Once customer orders have shipped from our factory, customers are notified by electronic mail with a detail shipping confirmation.
In addition,Sinorise offers every type of outbound shipping available including DHL,UPS,Fedex,TNT,etc.
FAQ
1.
Q: How do you make our business long-term and good relationship?
A :1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
2.
Q: What products can supplier? A: We can supply all industrial heaters, heating element machinery, raw material and spare parts for heating elements. thermocouples and parts
3.
Q: Do you have the ability to do independent research and development?
A: Our engineering department has 5 elites, we have the R&D ability to make our products competitive. We also collect regularly customer feedback, products improvement and new product requirement.
Shenzhen Suwaie Technology Co., Ltd. Focus on the production of Spring Heating Element. Our company has professional equipment and engineers to provide the production and service of Spring Heating Element.
