Type J Straight Hot Runner Heater
Introduction
hot runner coil heaters spring heaters 2.2x.4.2mm cross section specification
Description of Coil Heater:
Shenzhen Suwaie Technology Co., LTD. manufactures a wide range of hot runner heaters, hot runner coil heater, Hot runner coil heaters are narrow and flat heating elements, which can be in different shapes and sizes. They are high performance heaters and used when space is limited but need higher power.
Technical Specifications:
1.Profile: 1.8mm(.071”) Thick X 3.2mm(.126”) Wide
2.Thermocouple: Integrated type J or type K
3.Maximum Sheath Temperature: 1382 deg. F
4.Sheath Material: Cr-Ni Steel
5.Maximum Total Straight Length: 3000mm (118.11”)
6.Length Tolerance: Heated +/-1%; Unheated +/- 2.5%
7.Maximum Voltage: 250VAC
8.High Voltage Stability: 800 VAC
9.Wattage Tolerance: +/-10% (contact hotset for special)
10.Minimum Bending Radius: 8mm(.315”)
11.Watt Density: 38.7 Watts/In2
12.Insulation Resistance: >=5M Ohm @ 500 VDC (cold)
13.Leakage Current: <= 0.1mA @ 253 VAC (cold)
14.Length of Unheated Zone: 65mm(2.56”); 25mm(1.00”) Transition Head
15. Standard Connection from Stock: 48” Teflon Leads.
Minimal space requirement
Operates up to 700C (1300F)
Square profile for better contact & performance
Fully sealed for Extra long life
Ideal for hot runners
Includes type J thermocouple
1m Glass impregnated fibre sheath leads
Heaters 220 , 230Volts

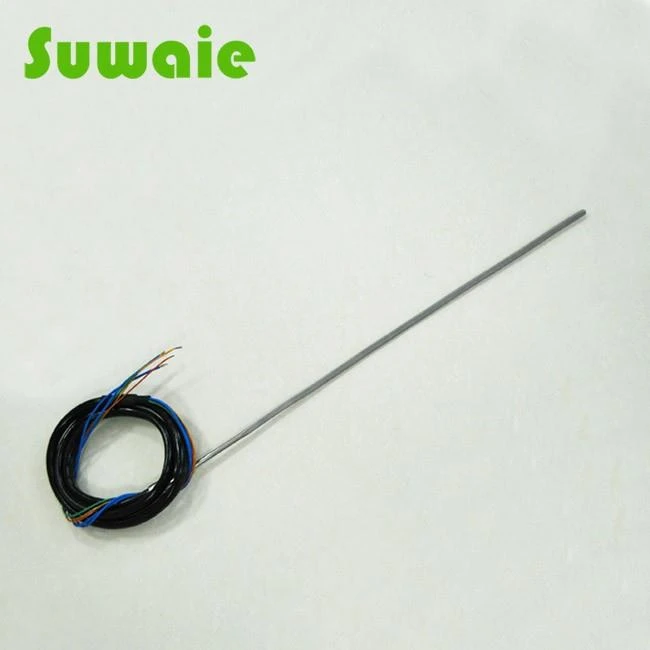

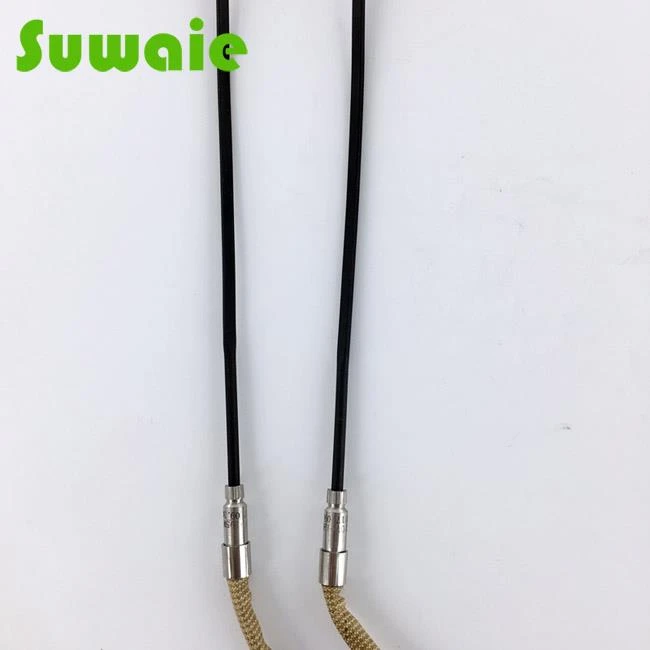

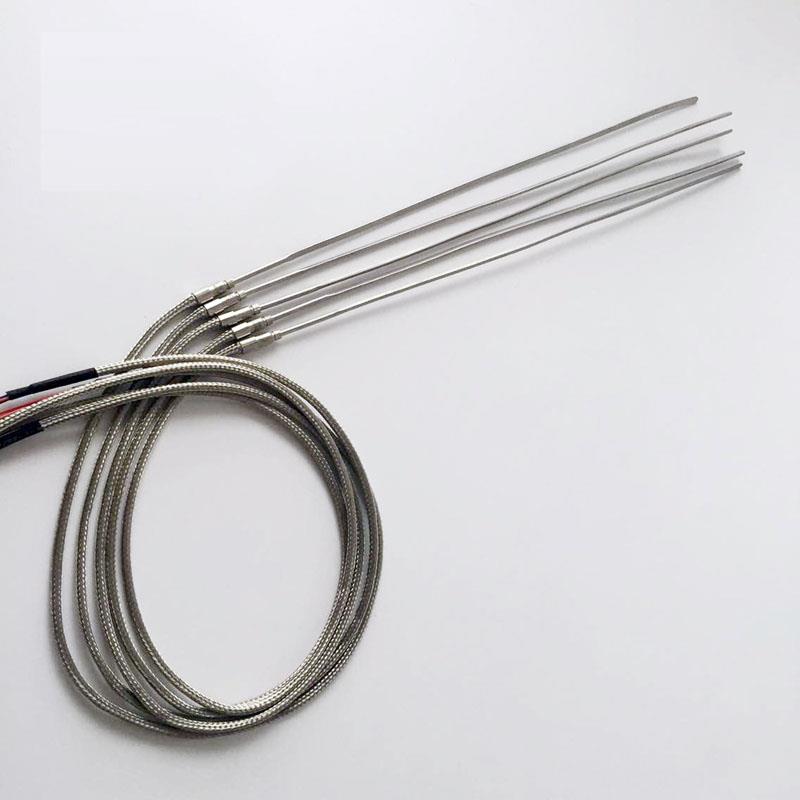

Coil Heater products picture show
Coil Heater Process show
Hot Runner Mold Heater Test room show
Packing and shipment ways
Advantage:
1. Professional installation instructions
Our company also can arrange our engineers to provide you professional installation guide.
2. Promising the goods quality
All of products will be tested many times and 100% promise the products are well before shipping.
3. Customized products
The products can be customized according to your projects and offer you the drawing for free.
4. After-sale service
We guarantee all of our heating element one years. During the time.
FAQ
1.
Q:How do you control the quality?
A:All raw materials are sourced by professional buyers, standardized and scientific Quality Controlled Process is in place and strictly executed.
2.
Q: How can I know the status of my products ?
A: We will keep you posted for the every production progress like material purchasing, production status, delivery time, tracking number until you recieved the products.3.
Q:How about the Package & Product design?
A: Based on factory original box, original design on product with neutral laser and label, original package for export carton. Custom-made is OK.
Shenzhen Suwaie Technology Co., Ltd. Focus on the production of Type J Straight Hot Runner Heater. Our company has professional equipment and engineers to provide the production and service of Type J Straight Hot Runner Heater.
