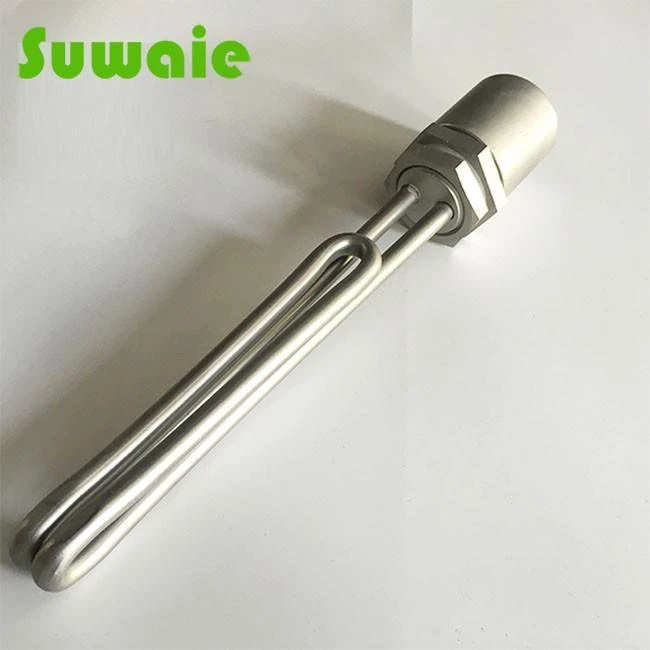

SUWAIE water heating element is brazed or welded to a thread/flange. These elements are supposed to immersion in fluids and gases. Water heating element is to be installed via a threaded port in the tank or vessel.
SUWAIE water heating element is available in varieties of pipe thread sizes and materials. Terminal housings are available for indoor, outdoor and hazardous environments.
Many options are available. We also do customize product, but it bases on a certain quantity. We are looking forward to any cooperation.
What can an SUWAIE heating element applied to?
1. Heating transfer fluids.
2. Heating medium and lightweight oils.
3. Heating water in tanks.
4. Pressure vessels.
5. Freeze protection of any fluids.
6. Food processing equipment.
7. Cleaning and rinsing equipment.
8. Beverage equipment.
And so on.
Heat intensity | Not exceeding 30w/cm2 (advisable) |
Power | 1KW-30KW, OR Depends on the dimension |
Exhaust extreme (when cold) | <=0.1mA to 242 v. |
Insulation (when cold) | 5 Min Ohms 500 Watts minimum |
Dielectric strength | 1500v. 1/sec |
Working temperature | 650 Deg C max. |
Length tolerance | +/-1.5% |
Diameter tolerance | -0.02 to -0.06 mm |
Cut off connection tolerance | +/-15 mm |
Power tolerance (w) | +5 % - 10 % |
Cold areas | Depends on length and diameter 5-25mm |
3KW Stainless Steel Immersion Heater Element Installation diagram
3KW Stainless Steel Immersion Heater Element Wiring
Products show
Process and machine show
Packing and shipment show
Our advantages:
a) Manufacturer, in house mould design and assembly, competitive price.
b) 10 years' of experience working with OEM's various materials
c) QC:100% inspection
d) Confirm sample: before start mass production we will send the pre-production samples to customer for confirmation. We will modify the mould until customer satisfied.
e) Small Order Allowed
f) Strict QC and high quality.
g) Highly skilled manufacturing process
h) A broad variety of OEM product range
FAQ
1. Q: How to Place an order?
A: Kindly pls send us you order by email, we will confirm the PI with you. we wish to know the followings: Delivery information-company name, address, phone/fax number, destination, transportation way; Product information :item number, size, quantity, or any requirements, etc.
2. Q: What is the standard of package?
A: Professional export packing:
1) Separate Blister plastic box or Bubble Wrap/Pearl Wool, keep no scratch and damage.
2) Under 100 KGS parts, use strong DHL export Carton .
3) Above 100 KGS, will customize Wooded case for packing.
