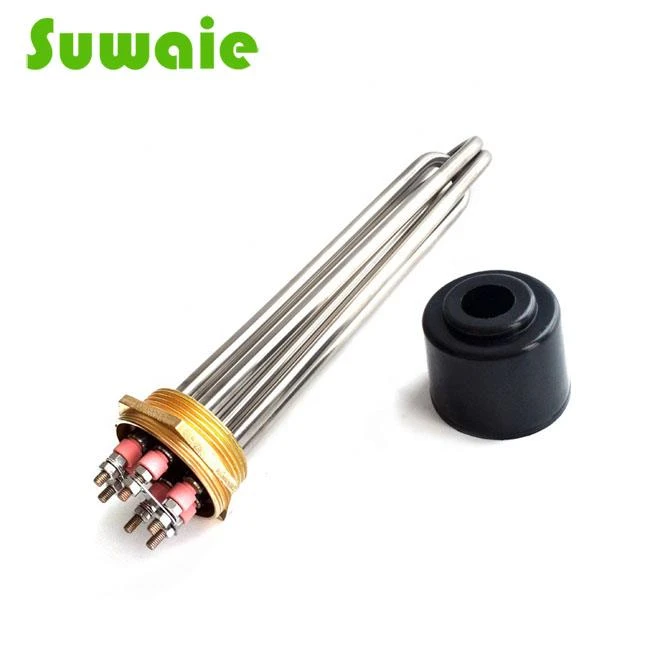

Brass Flange Industrial Electric Immersion Heaters
Specifications
Enclosure: Heavy gauge, corrosion protected, mild steel having a hinged access door and two undrilled removable gland plates for cable entry (finished in grey stove enamel)
Flange: Brass or 316L stainless steel having 8 bolt holes, 10mm diameter on 146mm PCD
Elements: Nickel chrome resistance wire compacted in high purity magnesium oxide insulating powder and sheathed in corrosion resistant Incoloy; each element is secured to the flange by screwed compression fixings, making them individually replaceable
Controls: A capillary type control thermostat and a manual reset cut-out thermostat are fitted as standard
Working Pressure: The maximum allowable working pressure is 6 barg / 87 psig
Thermostat Pockets: Two stainless steel pockets are secured into the flange by screwed compression fittings, one of which is thermally linked to the uppermost element
Voltage: Standard units are nominally designed for 415V, and are suitable for operation on 380 to 440V electrical supplies; other voltages and alternative wiring configurations available on request
Applications:
Boiler Equipment
Calorifier Packages
Cleaning and Rinsing Equipment
Heat Transfer System
Hot Water Storage Tanks
Heat intensity | Not exceeding 30Wcm2 (advisable) |
Power | Depends on the dimension |
Escape of current (when cold) | <=0.1mA a 242 v. |
Insulation (when cold) | 5 Min Ohmios 500 Watts minimum |
Dielectric strength | 1500v. 1/seg |
Working temperature | 750ºG max. |
Tolerance of length | +/-1.5% |
Tolerance of diameter | -0.01 a -0.06 m/m |
Tolerance of cut of connexion | +/-15 mlm |
Power tolerance (w) | 5% - 10% |

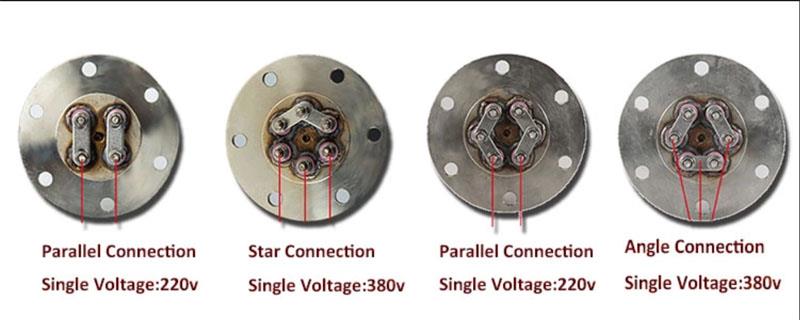

Brass Flange Industrial Electric Immersion Heaters Wiring

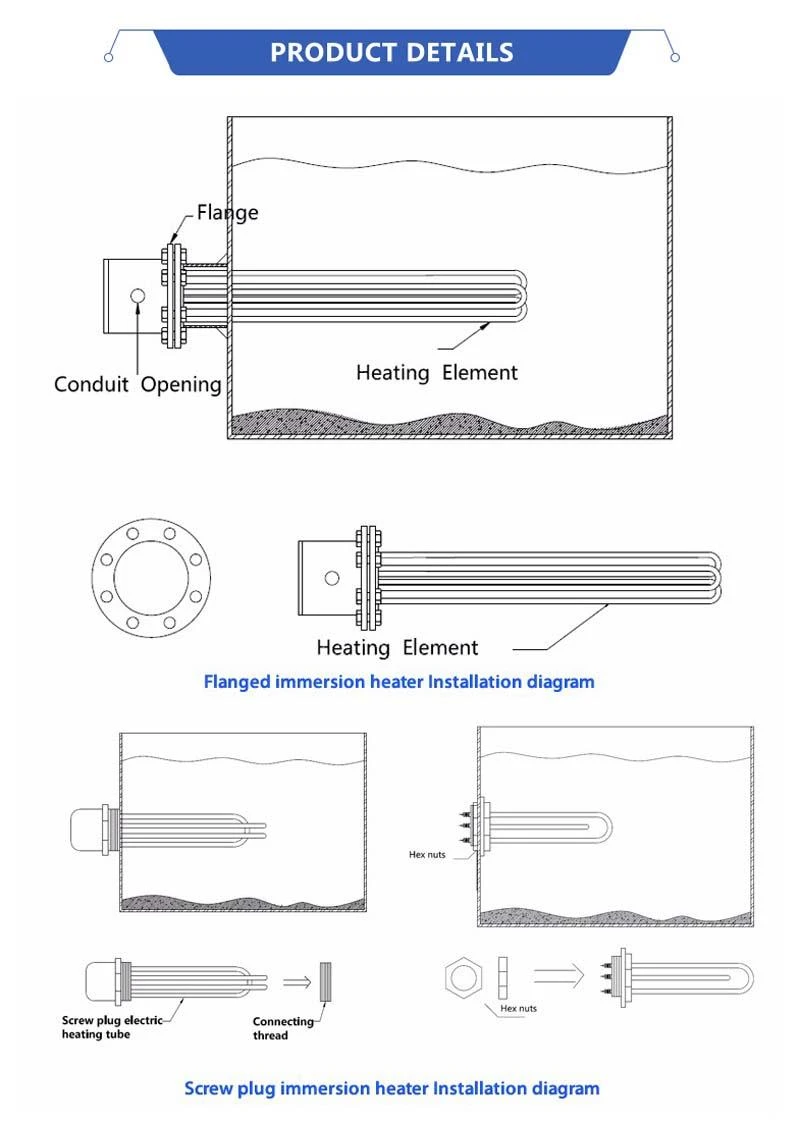

Brass Flange Industrial Electric Immersion Heaters Installation diagram

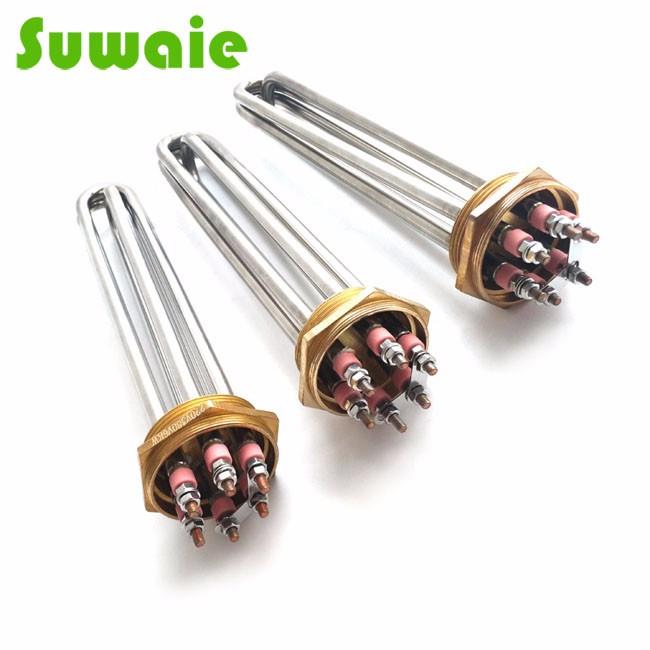

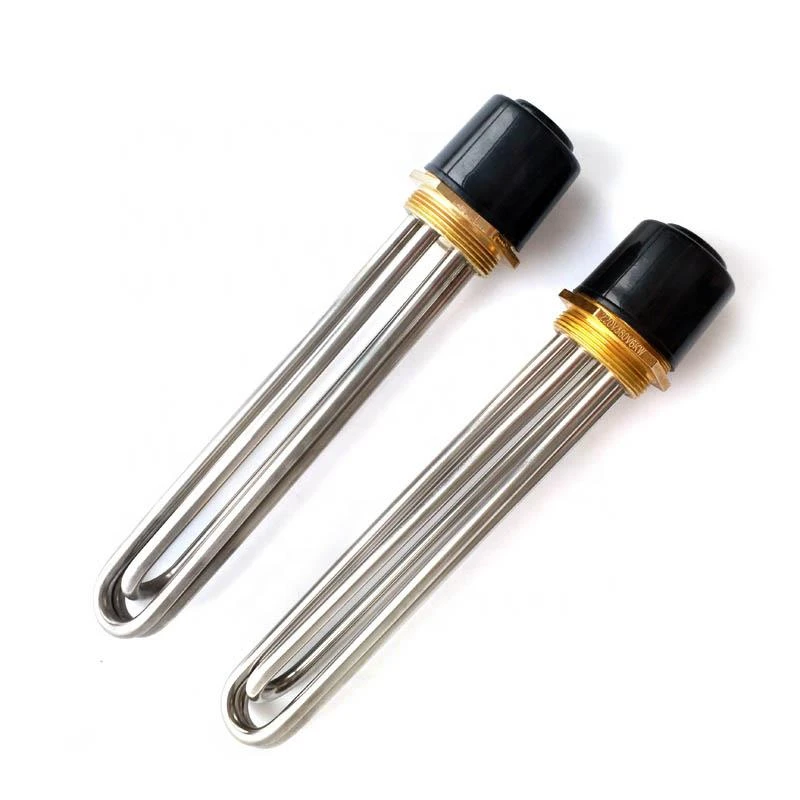

Products show

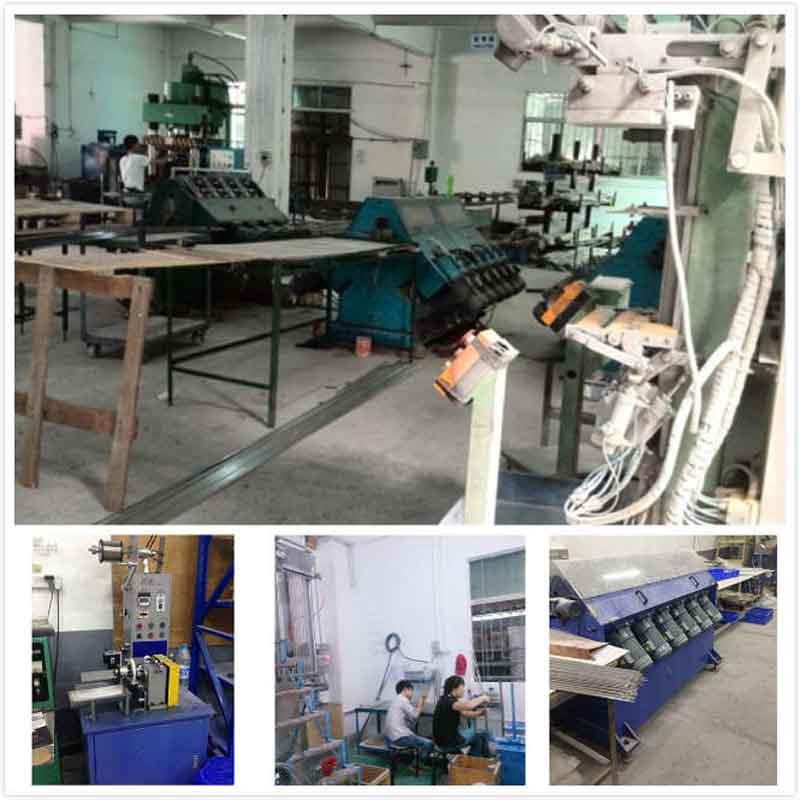

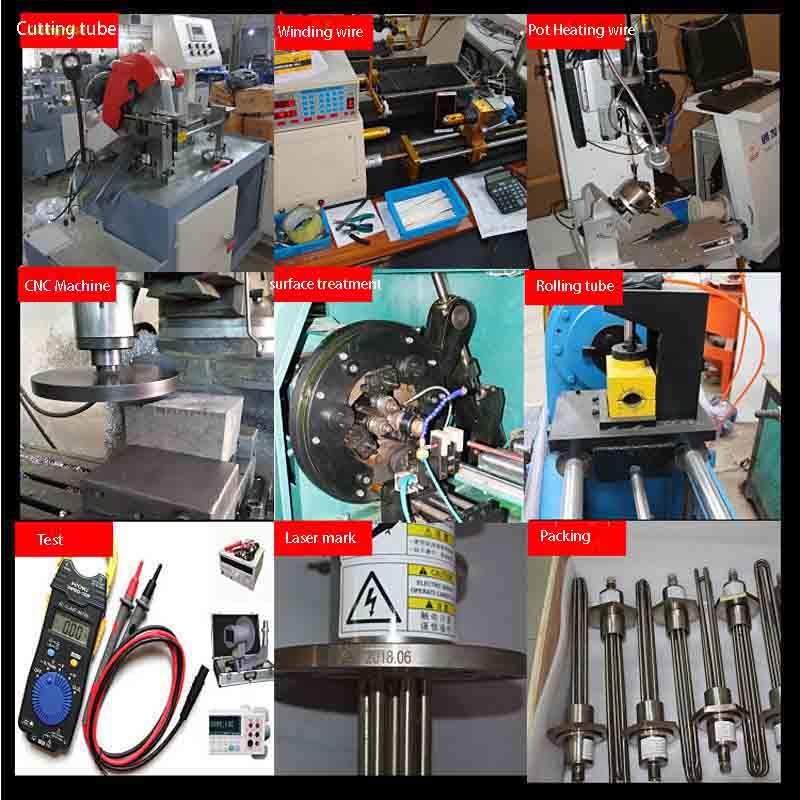

Process and machine show
Packing ans shipment
Our Advantages:
1. We accept Custom-made and OEM, so that we can meet the special requirements from different customers.
2. We can produce Moulds/Tooling by ourself, it can help to save your cost and time while in volume production.
3. We have a group of experienced technical engineers to help customers solve the problems and requirements at any time.
4.We promise the high quality with resonable price,and guarantee the lead time for orders.
FAQ
Q: I have no drawing, how should I start the new project?
A: You can tell us the voltage, power, shape, tube diameter, and send the heating element pictures.
2. Q: Is there cheap shipping cost to import to our country?
A: For small order,express will be best, for bulk order,sea ship way is best but take much time.
For urgent orders,we suggest by express, big quantity by air.
