Commercial Immersion Heater
Product Introduction

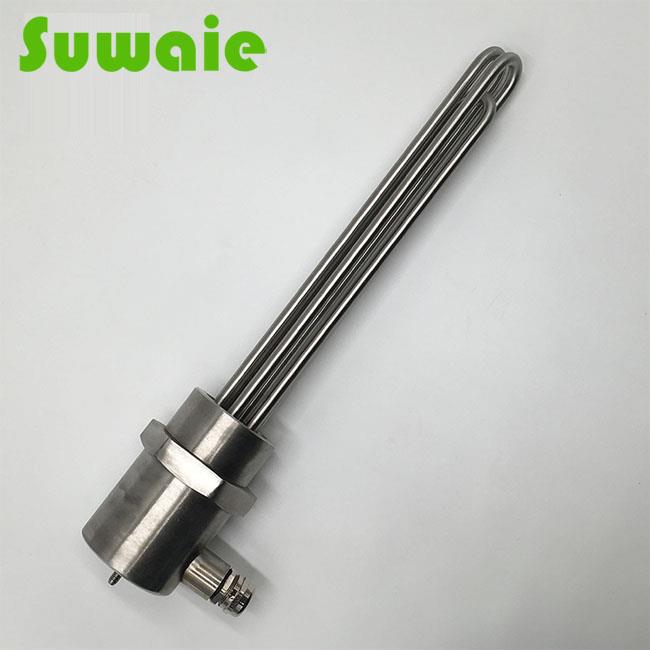

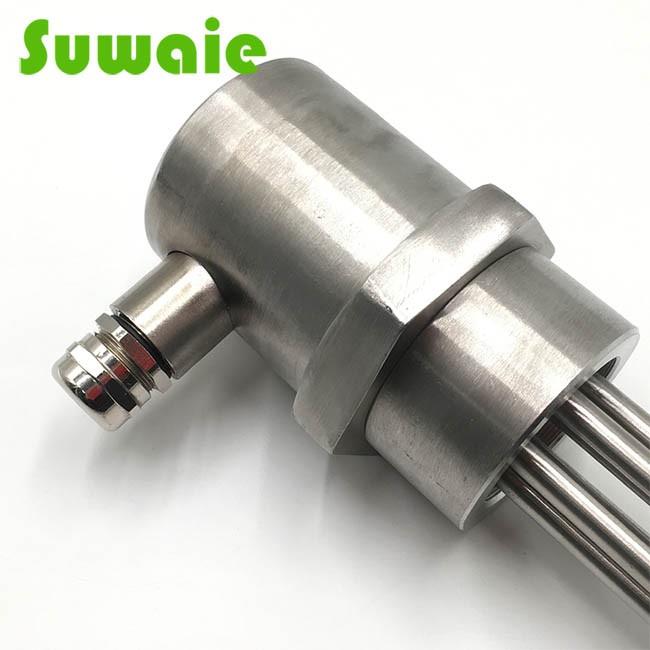

Flange mounted immersion heater for water heating is made of seamless stainless steel tube, high-quality Mgo, High Ohm NiGr alloy wire. Flange immersion heater is more heat exchange efficient, that means flange immersion heater could standard 3 to 4 times wattage.
1.We offer standard as well as customized models.
2.We offer different tube diameters like 6.5mm,8mm.8.5mm,9mm,10mm,12mm and others, different length range 10mm to 6000mm .
voltage: 110V 180V 220V 230V 280V 380V or as customer's demands
Wattage:0.5KW to 15KW
3.We offer different sheath materials. It can be availed in different materials like Incoloy 800, SS 304, SS 321, SS 316, Copper & Titanium.
Specification
Product nama | Flange Immersion Heater |
Immersion heater diameter | 8mm,9mm,10mm and so on. |
Resistance wire | NiCr8020 |
Voltage | 220V / 380V |
Insulation resistance | ≥50M Ohm |
Leakage current | ≤0.5mA |
Length tolerance | ±0.5mm |
Wattage tolerance | +5%, -10% |
Input voltage | 12V, 24V,110V,220V,240V |
Material | Stainless steel |
Flange size | Din30-DN300 |
Flange material | SUS304 |
color | White |
Application
1. Water Heating
2, Oil Heating
2.Air Heating
3.Heat Transfer Systems
4.Food Processing
5.Boiler Equipment
6.Parts Washing Tanks
Products Show
How To Produce This Immersion Heaters
Quality Control Test Room
Packing and shipment:
Our Advantages
1. We accept Custom-made and OEM, so that we can meet the special requirements from different customers.
2. We can produce Moulds/Tooling by ourself, it can help to save your cost and time while in volume production.
3. We have a group of experienced technical engineers to help customers solve the problems and requirements at any time.
4. We promise the high quality with resonable price,and guarantee the lead time for orders.
FAQ
1. Q: How to proceed the order if I have logo to print?
A: First, Artwork for visual confirmation, and next is Sample picture or sending sample to you for confirmation, finally we will go to mass production.
2. Q: What is your minimum order quantity?
A: There's no minimum quantity ,you can buy any quantity. However, few in number, the unit price will be a little higher.
Shenzhen Suwaie Technology Co., Ltd. Focus on the production of Commercial Immersion Heater. Our company has professional equipment and engineers to provide the production and service of Commercial Immersion Heater.
