Product description
Flanged Immersion Heaters, both round flange and square flange models are a great choice for applications requiring larger wattages. Flanged immersion heaters are designed for installation into a pipe body, tank or pressure vessel using standard pipe size. These heaters are available in a wide selection of rates, sizes and sheath materials suitable for the heating requirements of water, air and other gases. Flanged immersion heaters are very efficient since all energy that is generated is dissipated directly into the medium which is being heated. All flanged heater models incorporate tubular heater construction welded or brazed into a carbon steel pipe flange. Nema 1 terminal enclosures are supplied with all standard units. Moisture resistant and explosion proof models are also available. A number of sheath materials like Titanium, Incoloy, Stainless Steel, Steel, and Copper can be used as required for specific applications.
Standard Flanged Immersion Heaters have a 150 lbs flanges but 300 lbs flanges are also available. To guarantee sheath material and watt density compatibility with material or process being heated consult SUWAIE.
1-1/2” flange immersion heater Specification
Flange size | Voltage | Power | Tube material | Tube diameter | Length |
1-1/2”(DN40) | 220V 380V | 3KW | SUS304 | 10mm | 200-210 mm |
1-1/2”(DN40) | 220V 380V | 6KW | SUS304 | 10mm | 250mm |
1-1/2”(DN40) | 220V 380V | 9KW | SUS304 | 10mm | 300mm |
1-1/2”(DN40) | 220V 380V | 12KW | SUS304 | 10mm | 350mm |
1-1/2”(DN40) length type | 220V 380V | 9KW | SUS304 | 10mm | 600mm |
1-1/2”(DN40) length type | 220V 380V | 12KW | SUS304 | 10mm | 600mm |
2” flange immersion heater Specification
Flange size | Voltage | Power | Tube material | Tube diameter | Length |
2” (DN50 ) | 220V 380V | 3KW | SUS304 | 12mm | 200-210 mm |
2” (DN50 ) | 220V 380V | 6KW | SUS304 | 12mm | 250mm |
2” (DN50 ) | 220V 380V | 9KW | SUS304 | 12mm | 300mm |
2” (DN50 ) | 220V 380V | 12KW | SUS304 | 12mm | 350mm |
2” (DN50 ) length type | 220V 380V | 9KW | SUS304 | 12mm | 600mm |
2” (DN50 ) length type | 220V 380V | 12KW | SUS304 | 12mm | 600mm |
Products show

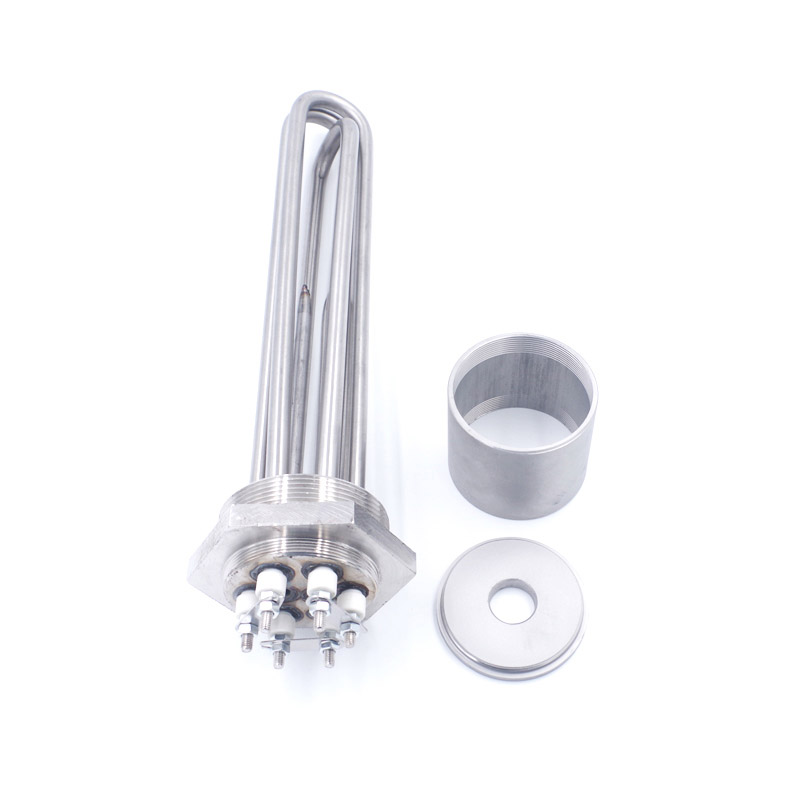

Electric Flange Immersion Tubular Heater Top mounting
Process and test room show
Packing and shipment
Pre-sale
(1) Instruct customers to choose the most suitable electric heating element.
(2) Designing electric heating components and electric heating equipment for customers free of charge, seeking an ideal solution.
(3) The products can be designed and manufactured according to the special requirements of customers.
Sale
(1) Strict inspection before leaving the factory.
(2) Organize shipments in accordance with the contract.
After sale
(1) Immediately notify the customer of the logistics and express delivery of the goods after delivery, so that the customer can track their goods in time.
(2) Commissioning and trial operation of electric heating elements.
(3) The telephone directs the operator of the heating element.
(4) The problems encountered by domestic customers in the production process, our company's service personnel guarantee to give clear solutions within 24 hours.
FAQ
1. Q: Will my drawings be safe after sending to you?
A: Yes, we will keep them well and not release to third party without your permission.
2. Q: How to transport my products?
A: If the goods is less than 200kg, we suggest to use express delivery. We have long-term cooperation with FedEx/DHL/UPS and enjoy much discount. If the goods are more than 200kg, we can arrange shipment as per customer’s requirements.
3. Q: Do you accept OEM manufacturing?
A: Yes! We do accept OEM manufacturing. We will quote you the exact price and make the exact heating elements to your specification and drawing.
