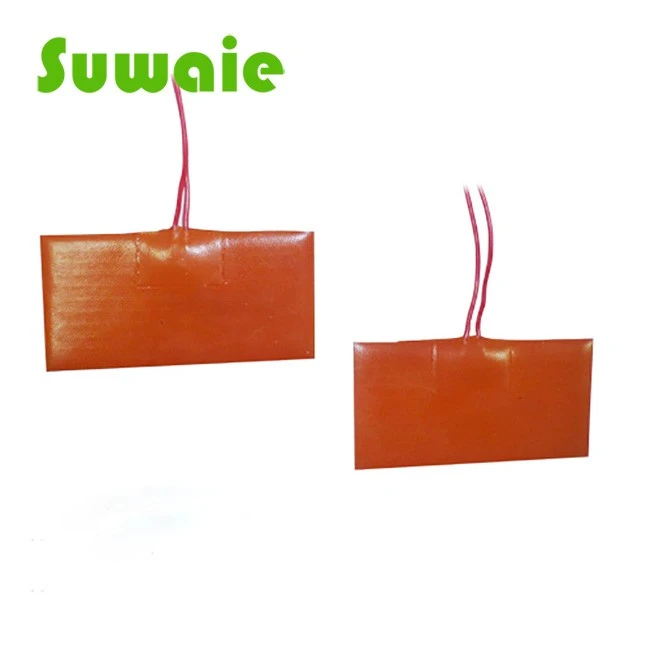

24v Silicone Heater
Descriptions:
Suwaie heater custom silicone heaters take advantage of the unique properties of silicone rubber to provide flexible heating elements of unparalleled performance. Silicone rubber is calendared onto fiberglass cloth in a variety of thicknesses and constructions which serve as the basis for Suwaie flexible silicone heaters. Generally, two layers of material containing an etched foil element or a precision wire wound element are vulcanized together to form a basic silicone heating element.
Feature of the Silicon Rubber Heating Pads
Product name | silicone heating pads |
Temperature Rating | 400°F(204°C)maximum operating |
Size/Shape Limitations | Maximum width of 48 inches, no maximum length |
Thickness | ~0.06 inch(Single-Ply)~0.12 inch(Dual-Ply) |
Voltage | Any AC or DC |
Wattage | Customer specified(Normal maximum of 5 watts of 5 watts per square inch) |
Power lead wire | Silicone rubber, SJ Power Cord, or Teflon insulated stranded wire |
Attachment | Hooks, lacing eyelets, Or Velcro closure. Temperature control(Thermostat) |
Description | 1. Silicon Rubber Heating Pad/Sheet has advantages of thinness, lightness, sticky and flexibility. 2. It can improve heat transfer, accelerate warming and decrease power under the process of operation. 3. They are heating fast and thermal conversion efficiency high. |
Specifications
· Silicone rubber extruded outer sheath
· Fiberglass knitted and braided heating element construction
· 4.3W/in² power density
· Suitable for electrically conductive surfaces
· 24" power leads with
120V: standard 2 prong plug
240V: bare wire connection
12V: two line wire
24V: two line wires
.
Silicone Rubber Heaters - Applications:
1.Heating of Electronic Components- ATM's and Photocopiers
2.Heating of Aerospace Instrumentation-Satellites and Spacecraft
3.Semiconductor Wafer Processing
4.Autoclaves, Incubators and Sterilizers
5.Vacuum Chambers
6.Medical Imaging, Medical Diagnostic Instruments and Analyzers

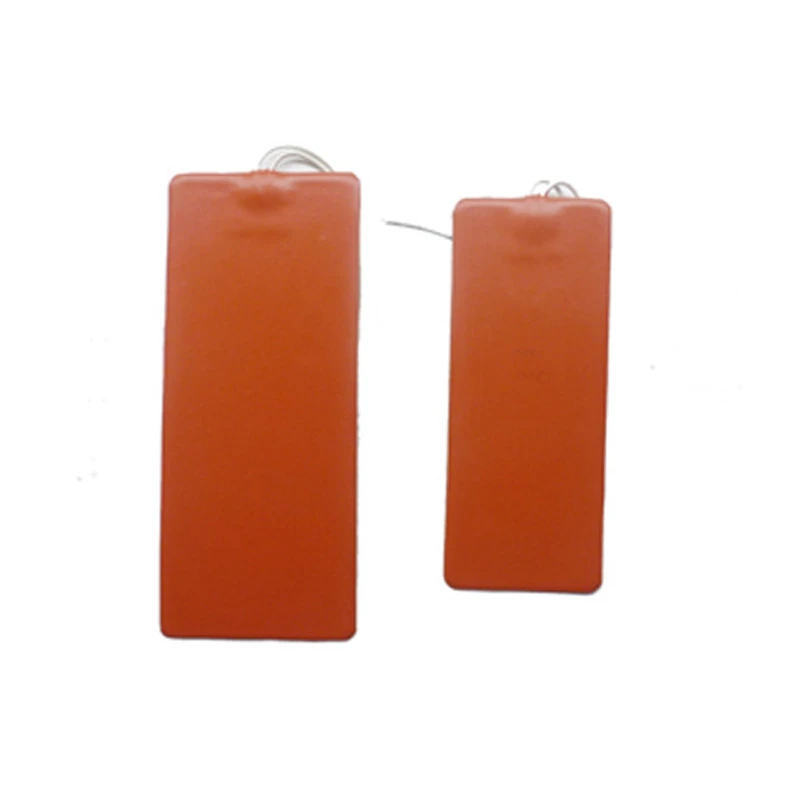

Silicone heater products show
Process show
Packing and shipment case show
Our trade terms:
1. Payment term: 50% deposit by T/T,balance before shipentment
2. Delivery time: 7-30days according to your order qty.
3. Samples time: 3-7 days.
4. Shipping terms: FOB Shenzhen,C&F Shenzhen.
5. Discounts will be dertermined by quantity.
6. Welcome distributors to cooperate together.
FAQ
1.
Q:How can you ensure the HEATING ELEMENTS product quality?
A: Before shippment, all the HEATING ELEMENT have aging test. And then we also have Withstand voltage test and Insulation resistance test, ensure products can transportation safety and normal use.
2.
Q：What is the main service of your factory?
A: We focus on heating element for more than 12 years!
3.
Q:Is there cheap shipping cost to import to our country?
A: For small order,express will be best, for bulk order,sea ship way is best but take much time.
For urgent orders,we suggest by express, big quantity by air.
Shenzhen Suwaie Technology Co., Ltd. Focus on the production of 24v Silicone Heater. Our company has professional equipment and engineers to provide the production and service of 24v Silicone Heater.
