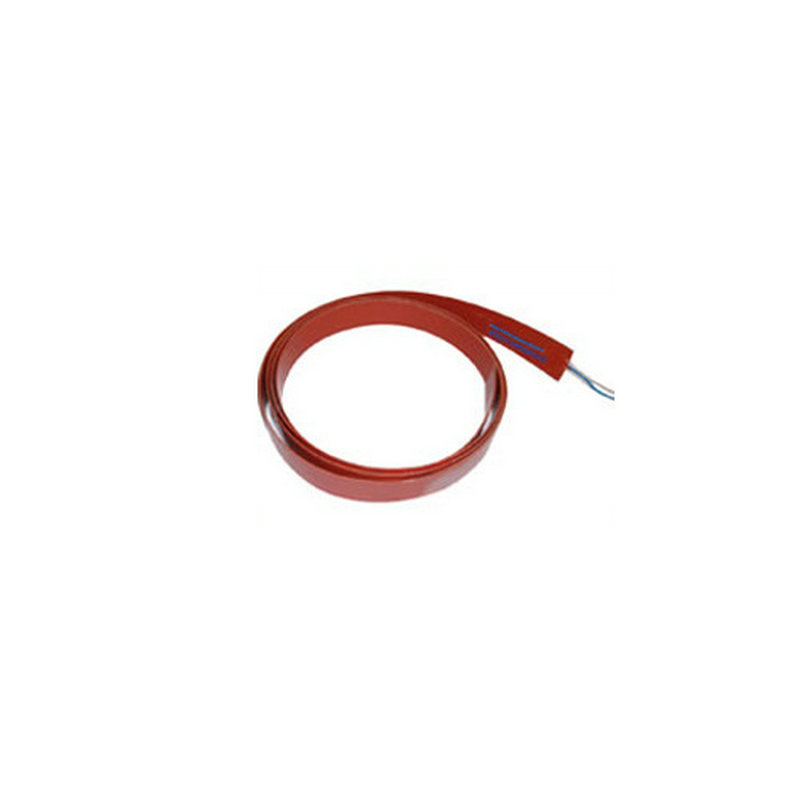

Silicone Rubber Heaters are available as wire wound or etched foil. Wire wound elements consist of the resistance wire wound on a fiberglass cord for support and stability. Etched foil heaters are made with a thin metal foil (.001”) as the resistance element. Wire wound is recommended and preferred for small to medium size quantities, medium to large sized heaters, and to produce prototypes to prove out the design parameters prior to entering into large volume production runs with etched foil.
Features
· Moisture- and chemical-resistant
· Rapid thermal response. Maximum exposure temperature to 450°F
· Exceptional flexibility and durability
· Perfect for a wide range of applications, including heating pipes and laboratory apparatus
· Wide range of sizes
Specifications
· Silicone rubber extruded outer sheath
· Fiberglass knitted and braided heating element construction
· 4.3W/in² power density
· Suitable for electrically conductive surfaces
· 24" power leads with
120V: standard 2 prong plug
240V: bare wire connection
12V: two line wire
24V: two line wires
Technical Data:
| Silicone rubber heater |
|
Dimension | Dimensions on request | |
Thickness | 1.5mm | |
Heating element | Nickel-Chromium or Copper-Nickel resistance wire wound around a fiberglass core | Nickel-Chromium or a Copper-Nickel resistance wire |
Voltage | Any voltage on request | |
Output | Up to 5KW/M2 | |
Tolerance | ±10% on resistance | |
Max surface temperature | 200°C | |
Min exposure temperature | -60°C | |
Products pictures
Works line show
Market:
Currently, Suwaie Technology heating element is already exported to Asia, Europe, South America, North America, Africa and Middle East and other regions. For more details, please feel free to contact us. We will give you best service and timely reply.
Our Services
1. We are skilled in producing this type of heating element and have adequate supply of spare parts, so we can guarantee continuous production and keep delivery.
2. Your inquiry related to our products or prices will be replied in 24hrs.
3. Well trained and experienced staffs to answer all your enquiries in fluent English.
4. OEM&ODM, or any your customized lightings, we can help you to design and put into production.
5. Your sales area, ideas of design and all your private information will be protected.
6. If you need more details, please contact our sales service person below online or via email.
FAQ
1. Q: What Inspection Equipments do we have?
A:Current tester, withstand voltage tester, X-ray machine, insulation current tester, insulation voltage tester, pressure tester, salt spray tester, micrometer, etc.
2. Q: How can you ensure the HEATING ELEMENTS product quality?
A: Before shippment, all the HEATING ELEMENT have aging test. And then we also have Withstand voltage test and Insulation resistance test, ensure products can transportation safety and normal use.
3. Q: How about the Package & Product design?
A: Based on factory original box, original design on product with neutral laser and label, original package for export carton. Custom-made is OK.
