Silicone Band Heater
Descriptions:
The Silicone Rubber Heaters below have been made for previous customers. You can order any of them by following the links below. Some are in stock in our warehouse (noted in the description) and will ship immediately. Non-stock heaters have a standard estimated lead time of 12 to 20 working days, depending on the quantity ordered. Small quantities of these Silicone Rubber Heaters can be delivered in as little as two days; expedite fees apply.
If your application requires a built-to-order 12V (or any other voltage, for that matter) silicone rubber heater, you can use our Silicone Rubber Heater Configurator to create a heater to your exact specifications, get an instant quote, and buy online.
Specifications and features
♦ Voltage：AC/DC 1-1000V
♦ Wattage：available for more than 0.1w
♦ Temperature range：-200〜300℃（-328〜572℉）
♦ The maximum temperature：300 ℃
♦ Dielectric strength: 1000 VEMS.
♦ Maximum strength exceeding element：0.020"(0.5mm)
♦ Wattage in air (inch²) (25℃/77ºF): 60w / inch²
♦ Softness ：Good：0.125"（3.2mm）minimum curve radius.
♦ Installment method：insulation material： retractable belt, heat-resistant cement and #12 pressure-sensitive adhesive.
♦ Functions：heating, warming and dehumidifying.
♦ Uses：Electrical appliances and medical instruments.

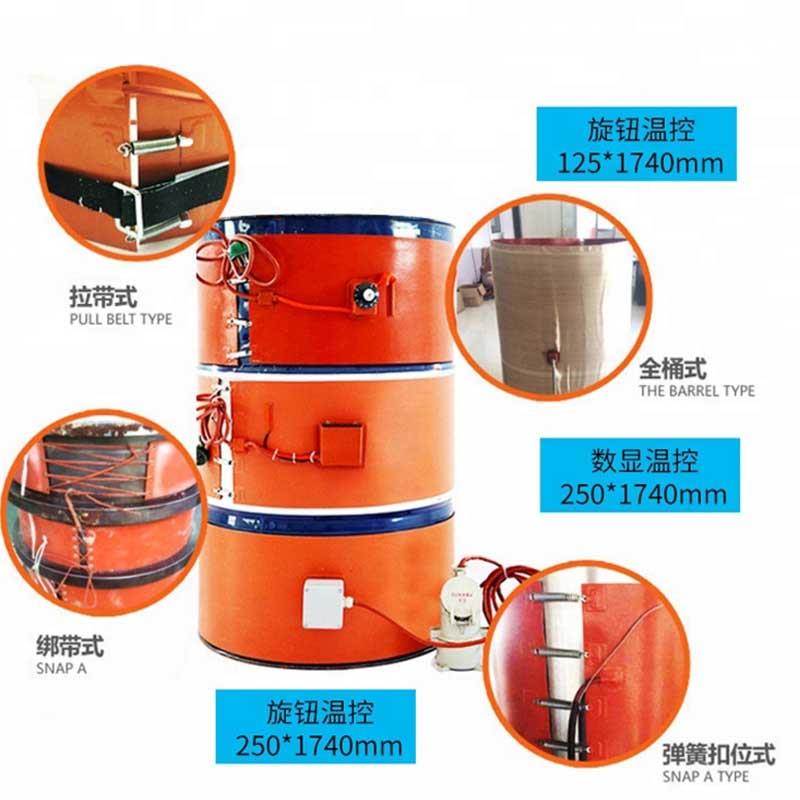

Description | Size 200L(55G) | Size 20L(5G) | Size200L(55G) |
Size(mm) | 250*1740*1.5 | 200*860*1.5 | 125*1740*1.5 |
Voltage /power | 230V 2000W | 230V 800W | 230V 1000W |
Temperature range | 0~250°C | 0~250°C | 0~250°C |
Weight(kg) | 1.5K | 0.6K | 0.8K |
MOQ(pcs) | 1 | 1 | 1 |
Delivery time | 3-5 days | 3-5 days | 3-5 days |
packaging | PE bags and carton | Same | Same |
The main product features are:
1.silicone heater sample
2.Light weight, thin, flexible
3.Designed to the exact shape (including cutout) and size which conforms to the profile of customer equipment.
4.Etched foil element, uniform heating

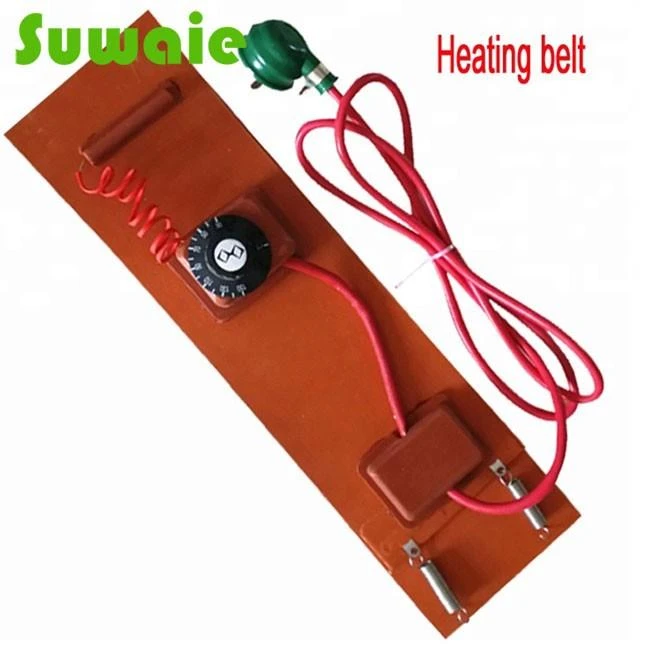

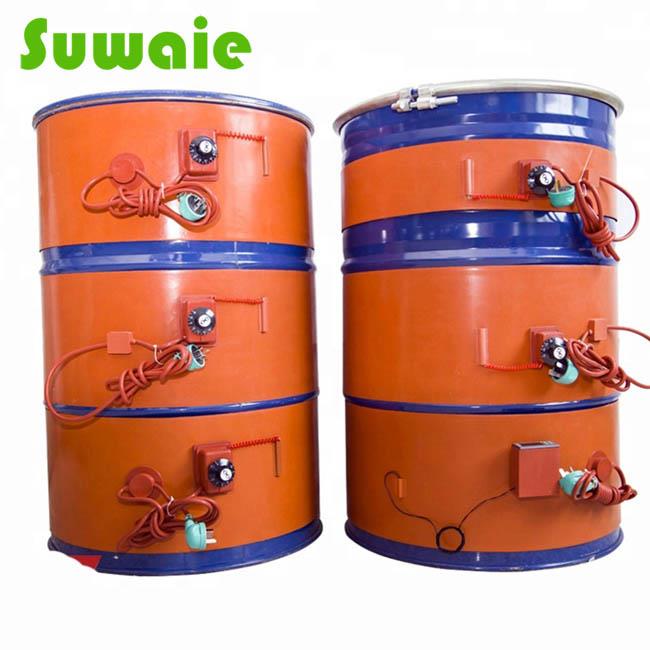

Silicone heater products show
Process show
Packing and shipment case show
What is the standard of package?
Professional export packing:
1)Separate Blister plastic box or Bubble Wrap/Pearl Wool, keep no scratch and damage.
2)Under 100 KGS parts, use strong DHL export Carton .
3)Above 100 KGS, will customize Wooded case for packing.
FAQ
1.
Q: I have no drawing, how should I start the new project? A:You can tell us the voltage, power, shape, tube diameter, and send the heating element pictures.
2.
Q:What's your packing?What to do in case of damaged goods during transport?
A1: Our Normal packing is bulking in Cartons, less than 20 kgs/carton, 48 cartons / pallet. We also can pack products according to your requirement.
A2: To avoid any subsequent trouble regarding quality issue, we suggest you check the goods once you receive them. If there is any transport damaged or quality issue, don't forget take the detail pictures and contact us as soon as possible, we will properly handle it to make sure your loss to reduce to the smallest.
3.
Q:Is it OK to print my logo on heating element product?
A:Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Shenzhen Suwaie Technology Co., Ltd. Focus on the production of Silicone Band Heater. Our company has professional equipment and engineers to provide the production and service of Silicone Band Heater.
