What Is a Cartridge Heater

A cartridge heater is a cylindrical heating element used to provide localized, efficient heat in industrial applications. In short, a cartridge heater is designed to be inserted into a drilled hole in order to heat a metal part or other material from the inside out. This design allows for precise temperature control and is particularly useful in processes such as plastic molding, die casting, and various heat treatment operations.

Its compact design makes it easy to install in tight spaces and is able to provide consistent heat where it is needed most. This article will take a closer look at what a cartridge heater is, how it works, and the types of applications and options. Whether you are looking for a solution for an industrial cartridge heater application or need a reliable heating element for a custom project, SUWAIE has over 18 years of industry experience and can provide a full range of advice based on your needs.

At SUWAIE, we specialize in manufacturing high-quality cartridge heaters to meet the rigorous requirements of modern industrial applications. With more than a decade of experience in the electric heating industry, we provide custom solutions, ensuring that our heating elements meet precise specifications for performance, life, and accuracy. Whether you require a standard cartridge heater or a custom configuration, our team of experts is ready to help you optimize your heating process. (info@suwaie.com)

What is a Cartridge Heater

A cartridge heater is a tubular, high-density electrical heating element designed to be inserted into a drilled hole to provide direct, localized heat. Unlike surface heaters that distribute heat from the outside, cartridge heaters efficiently conduct heat from the inside out, ensuring precise thermal regulation of a variety of industrial processes. Localized heating is provided in a variety of industries including aerospace, medical, plastic molding, packaging, die casting, and semiconductor manufacturing.

These heaters are engineered to provide controlled, concentrated heat in confined spaces. Their high watt density enables them to generate large amounts of heat in extreme conditions while maintaining structural integrity. Common applications include mold heating, metal forming, sealing operations, and fluid heating.

Key Components of Cartridge Heaters

1. Resistance Coil

The heating element is usually made of a nickel-chromium alloy, which is a resistance wire wrapped around a ceramic core. When an electric current passes through the resistance wire, it encounters electrical resistance, which generates heat. This simple yet effective principle is the basis of the working principle of the cartridge heater.

2. Ceramic Core

Provides mechanical support to the resistance coil while helping to evenly distribute heat along the length of the heater.

3. Magnesium Oxide (MgO) Insulation

A highly compacted dielectric insulation material that prevents electrical shorts and enhances thermal conductivity. The resistance wire and ceramic core are surrounded by a layer of magnesium oxide insulation. This magnesium oxide filling plays a key role in two aspects, it electrically insulates the resistance wire from the outer metal sheath, and also helps to conduct heat from the resistance wire to the sheath. The compact filling of magnesium oxide ensures efficient heat transfer and prevents any short circuits.

4. Metal Sheath

Usually made of stainless steel or Incoloy. The sheath is the part that is in direct contact with the component or material to be heated. Its function is to absorb the heat generated by the coil and transfer it to the surrounding area through conduction. The choice of sheath material is usually determined by the operating temperature and the environment in which the heater will be used.

5. Wires/Terminals

High temperature resistant wires connect the heater to the power source, ensuring safe and stable operation.

Cartridge heaters are available in a variety of diameters, lengths, and wattage configurations, making them a versatile solution for industries that require precise thermal control.

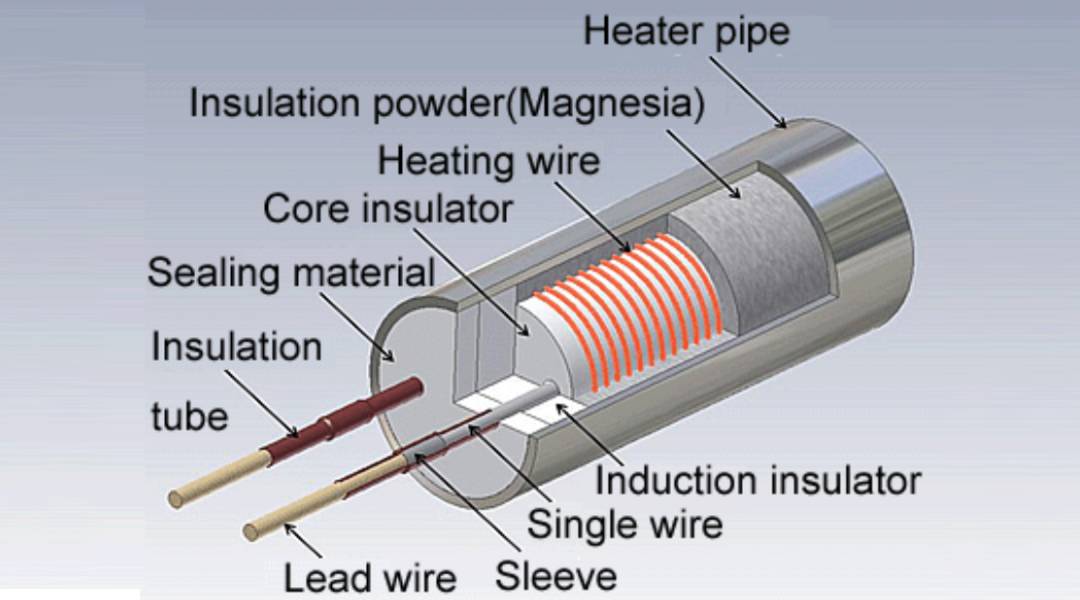

How Does a Cartridge Heater Work

When a cartridge heater is powered, the resistance wire heats up as the current flows through it. The heat is then conducted through the MgO insulation to the metal sheath. Once the sheath reaches the desired temperature, it transfers the heat to the material surrounding the heater by conduction. This method of internal heating is particularly effective in industrial applications where uniform temperature distribution is required, so the working principle of cartridge heaters is resistive (Joule) heating.

Working Process

1. Power supply: Voltage is applied to the heater through the wire, initiating the heating process.

2. Heat generation in the coil: The nickel-chromium wire generates heat when current passes through it.

3. Heat transfer by conduction: Heat is transferred from the resistance coil to the ceramic core, then to the MgO insulation, and finally to the metal sheath.

4. Heat distribution: The heated sheath effectively transfers energy to the surrounding material, achieving uniform temperature distribution.

Factors affecting heater performance

Fit and contact with the drill hole: For optimal heat transfer, the cartridge heater should fit tightly inside the drill hole. Precision fit (typically 0.004" smaller than the hole diameter) ensures efficient conduction and prevents overheating.

Watt Density: The power output per square inch of heated surface affects temperature rise and heater life. High watt density allows for faster heating but requires careful thermal management.

Material of the object being heated: The thermal conductivity of the surrounding material affects heat dissipation and performance. Materials such as aluminum conduct heat quickly, while stainless steel has a lower thermal conductivity, which affects heating efficiency.

Operating Temperature: Cartridge heaters can operate at temperatures up to 1400°F (760°C), but proper insulation and termination selection are critical for high temperature applications.

Cartridge heaters have transformed industrial heating applications by providing precision, efficiency, and adaptability. As a trusted manufacturer, SUWAIE offers OEM and ODM services to ensure that each cartridge heater meets the unique needs of our customers. Whether you require a custom watt density configuration, specialized sheath material, or integrated temperature sensor, our expertise ensures the best thermal solution for your industrial needs.

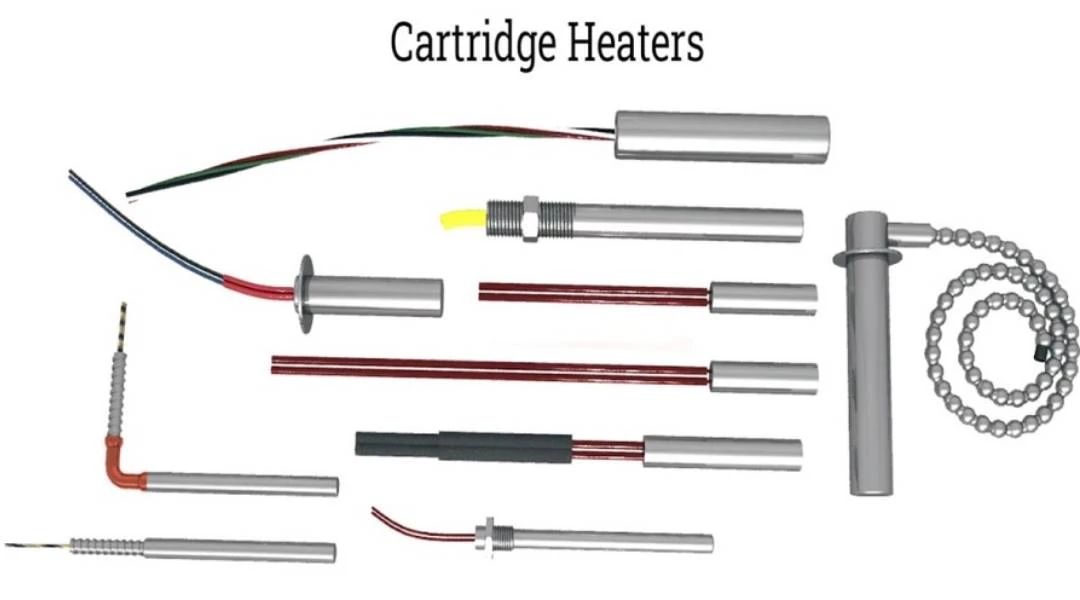

Cartridge heaters in different types of designs

Cartridge heaters are available in various types, each designed for specific applications and performance requirements. Selecting the right type ensures efficient heating, extended lifespan, and optimal thermal transfer. Below are the most common types of cartridge heaters used in industrial applications.

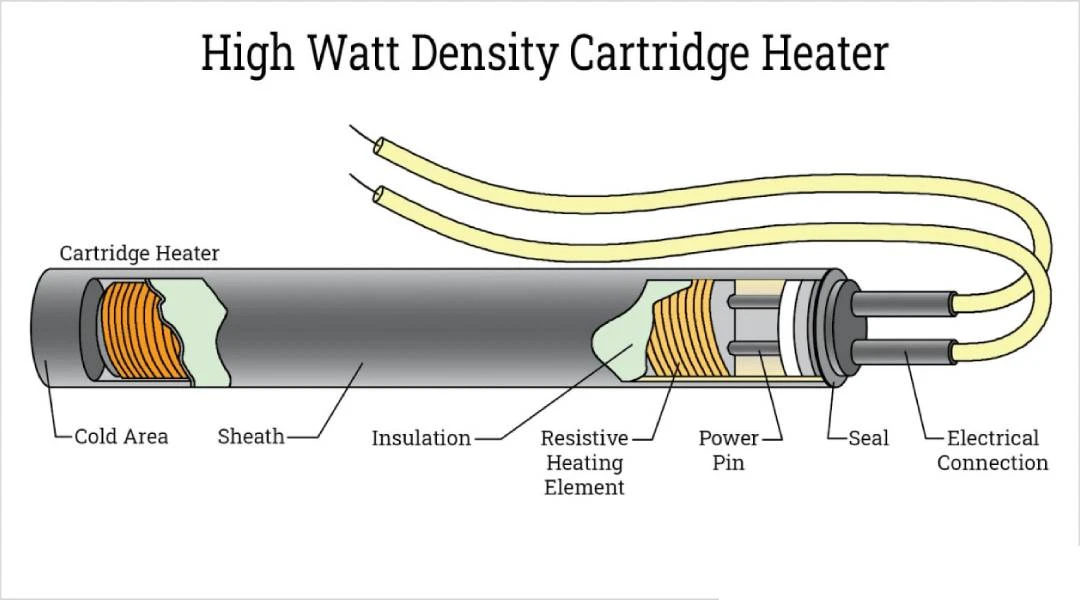

1. High-Density Cartridge Heater

High-density cartridge heaters are designed to operate at higher watt densities (typically above 50 W/in²), allowing them to reach temperatures of up to 1400°F (760°C). These heaters are manufactured using a swaged construction, which compresses the magnesium oxide insulation to enhance dielectric strength, heat transfer efficiency, and mechanical durability.

Applications

• Die casting and mold heating
• Plastic injection molding
• Medical equipment sterilization
• Semiconductor processing
• Aerospace and defense industries

Advantages

• Fast heat-up times
• Uniform temperature distribution
• High resistance to oxidation and thermal expansion

2. Low-Density Cartridge Heater

Low-density cartridge heaters operate at watt densities below 30 W/in², making them ideal for medium-to-low temperature heating applications. They are commonly used where gradual and consistent heating is required, without the risk of overheating sensitive components.

Applications

• Food processing equipment
• Liquid immersion heating
• Sealing and packaging machines
• Laboratory instruments

Advantages

• Cost-effective solution for moderate heating needs
• Reduces the risk of localized overheating
• Compatible with a wide range of materials

3. Thermocouple Cartridge Heater

This type of cartridge heater is equipped with an integrated thermocouple (typically Type J or Type K) that provides real-time temperature monitoring. This feature allows for precise temperature control, reducing overheating risks and improving energy efficiency.

Applications

• Scientific and analytical instruments
• Medical and laboratory heating devices
• Temperature-sensitive industrial processes

Advantages

• Built-in temperature sensing for accurate thermal regulation
• Eliminates the need for external temperature sensors
• Enhances process reliability and heater lifespan

4. Split Sheath Cartridge Heater

Split sheath cartridge heaters feature a flexible, expandable design that allows for improved heat transfer by maximizing contact with the bore walls. Unlike standard cartridge heaters, split sheath heaters expand when energized, ensuring a snug fit and reducing air gaps, which can cause uneven heating.

Applications

• Metal forming and machining operations
• High-precision industrial tooling
• Tight-tolerance bore heating applications

Advantages

• Improved heat conduction due to better surface contact
• Reduced risk of bore seizure
• Higher efficiency and uniform heat distribution

5. Custom Cartridge Heater

Custom cartridge heaters are designed to meet specific application requirements, including non-standard dimensions, voltages, watt densities, sheath materials, and lead configurations. These heaters can also be equipped with special coatings, moisture-resistant seals, and multi-zone heating capabilities.

Applications

• Unique or specialized industrial applications
• High-temperature environments requiring customized performance
• OEM equipment manufacturing

Advantages

• Fully tailored solutions for complex heating challenges
• Extended durability in harsh environments
• Compatibility with advanced control systems

How to Choose a Cartridge Heater

When selecting a cartridge heater for your application, it is important to consider the following key factors that directly impact performance, determining efficiency, lifespan, and overall performance in an industrial environment.

1. Watt Density

The watt density is the power output per square inch of heating surface area on the heater surface, which directly affects the performance and life of the heater. Using incorrect watt density can cause premature heater failure, uneven heating or excessive energy consumption.

How to Calculate Watt Density: Watt Density (W/in²) = Wattage (W) / π×Diameter (in)×Heated Length (in)

Selection Guidelines

• Low watt density (< 30 W/in²): Ideal for applications where moderate temperatures are sufficient and where the heat transfer requirements are not extreme. These heaters are typically used in processes such as fluid heating or light metal preheating.
• Medium watt density (30-50 W/in²): Suitable for many general industrial applications, offering a balance between heat output and energy efficiency. They provide consistent heating for processes like injection molding or die casting.
• High watt density (> 50 W/in²): Designed for applications that require rapid heating and high temperatures. These heaters can deliver significant power in a compact size, making them perfect for heavy-duty processes like high-speed metal tempering. However, a high watt density cartridge heater requires a very close installation fit to ensure efficient heat transfer.

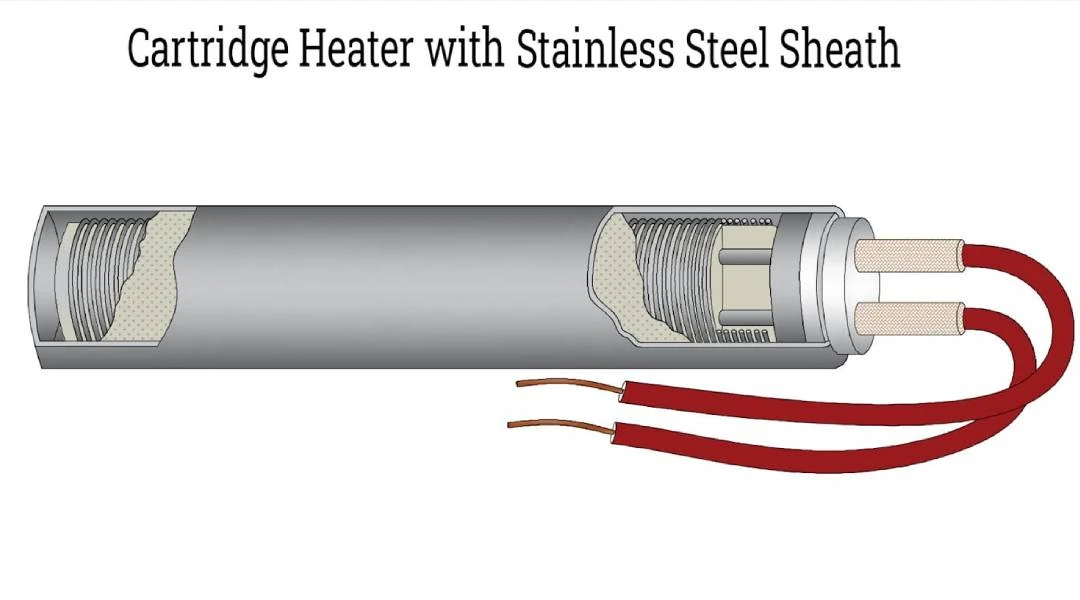

2. Sheath Material Selection

The outer sheath material of a cartridge heater must be selected based on temperature requirements, environmental conditions, and resistance to corrosion or oxidation.

Choosing the right sheath material ensures long-term durability and prevents premature failure in aggressive operating conditions.

Common Sheath Materials and Their Characteristics

Choosing the right sheath material ensures long-term durability and prevents premature failure in aggressive operating conditions.

3.Bore Fit and Installation Considerations

The installation fit of a cartridge heater plays a critical role in its efficiency. A poor fit can lead to heat loss, overheating, or bore seizure, significantly impacting performance.

Recommended Fit Tolerances

Tight fit (optimal heat transfer): 0.003" - 0.008" clearance between the heater and the bore.

Standard fit (easier removal and maintenance): 0.009" - 0.014" clearance.

4. Temperature Control Options

To maintain consistent heating and prevent overheating, cartridge heaters can be integrated with various temperature control systems.

Common Temperature Control Methods

• Thermocouples (Type J or K): Direct temperature measurement for precise control.
• RTD Sensors (Resistance Temperature Detectors): More accurate temperature measurement, ideal for sensitive applications.
• Digital Temperature Controllers: Enable programmable heating profiles and real-time adjustments.
• SCR/Thyristor Power Control: Provides proportional heating control to extend heater lifespan.

Effective temperature control not only enhances heating accuracy but also improves energy efficiency and prevents thermal damage.

Selecting the right cartridge heater involves careful consideration of watt density, sheath material, bore fit, and temperature control. Each application requires a unique configuration to achieve optimal heating performance while ensuring longevity and energy efficiency.

Applications of Cartridge Heaters

Cartridge heaters are versatile heating elements that are used across many industries due to their compact size and ability to provide localized, uniform heating. Here are some of the main industrial applications and their benefits:

1. Mold Heating

In industries such as plastic injection molding, rubber molding, and composite forming, cartridge heaters are used to maintain mold temperature stability. This ensures uniform heat distribution, reducing the likelihood of defects and enhancing the quality of the final product.

Benefits

Faster heat-up and cooling cycles for improved efficiency

Uniform heat distribution for consistent product quality

Extended mold life due to controlled heating

2. Die Casting & Metal Heating

Die casting and metal forming processes require intense and precise heat to shape and manipulate metals. Cartridge heaters provide localized heating in dies, molds, and metal parts to facilitate casting, forming, and pressing operations.

Benefits

Rapid heat response for efficient metalworking

Improved casting accuracy and surface finish

Reduced cycle times for increased production output

3. Food Industry

Cartridge heaters are used in food processing and packaging equipment where consistent heat application is required to seal, cook, or preserve food products. Their ability to deliver precise, localized heating makes them ideal for use in sealing bars, hot plates, and industrial food warmers.

Benefits

Compliance with food safety standards using stainless steel sheaths

Consistent temperature control for high-quality sealing

Energy-efficient heating with minimal waste

4. Medical Equipment

In the medical industry, precision heating is crucial for devices that require sterilization, fluid heating, or controlled temperature environments. Cartridge heaters are commonly used in medical diagnostic and laboratory equipment to ensure accurate temperature regulation.

Benefits

High precision temperature control for medical-grade heating

Compatibility with thermocouple sensors for monitoring

Long lifespan with minimal maintenance requirements

5. Plastic Molding & Extrusion

Cartridge heaters are extensively used in plastic extrusion, thermoforming, and blow molding processes. These processes require stable and uniform heating to ensure consistent material flow and proper mold filling.

Benefits

Improved material flow and reduced cycle times

Prevention of defects such as shrinkage and warping

Energy-efficient heating with customizable watt densities

6. 3D Printing & Semiconductor Processing

3D printing and semiconductor manufacturing rely on precise temperature control for melting, bonding, and material deposition. Cartridge heaters are used in heated print beds, bonding equipment, and wafer processing machines.

Benefits

Improved adhesion and print quality in 3D printing

Precision heating for delicate semiconductor processes

Compact design suitable for high-tech applications

How to Install and Maintain Cartridge Heaters

To maximize the performance, efficiency, and lifespan of cartridge heaters, proper installation and maintenance are essential.

Installation Best Practices

1.Select the Right Bore Size

Ensure the hole is reamed, not just drilled for precise fitting.A clearance of 0.003" - 0.008" ensures optimal heat transfer.

2.Ensure a Snug Fit

Loose fits lead to poor heat conduction and potential heater failure.Avoid excessive force during insertion to prevent heater deformation.

3.Keep the Heater Free of Contaminants

Avoid moisture, grease, oil, or plastic residue entering the heater.If contamination occurs, preheat the heater to remove moisture before use.

4.Proper Electrical Termination

Ensure lead wires are rated for the operating temperature.Use protective sleeves for lead wires exposed to high temperatures.

Maintenance Best Practices

1.Prevent Overheating & Thermal Shock

Use temperature controllers (thermocouples, RTDs, or digital controllers) to prevent excessive cycling.Avoid rapid heating and cooling, which can cause cracking or burnout.

2.Monitor Power Cycling

Frequent on-off cycling can reduce heater lifespan.Consider thyristor-controlled power supplies for smooth power regulation.

3.Avoid Bore Seizure (Stuck Heater)

Apply anti-seize coatings to prevent heaters from getting stuck in the bore.Ensure heaters are fully inserted, leaving a portion accessible for removal.

4.Check for Resistance and Insulation Integrity

Regularly measure the insulation resistance using a megohmmeter.Replace heaters showing signs of high resistance or dielectric breakdown.

Proper installation and maintenance reduce downtime, improve efficiency, and extend heater lifespan.

FAQs

To help you make an informed decision, here are answers to some common questions regarding these industrial heating elements:

What is the ideal bore hole size for installation?

The bore should be slightly larger than the heater's nominal diameter-usually a few thousandths of an inch over-to ensure ease of installation while still maintaining sufficient thermal contact.

How do I determine the proper watt density?

Watt density is calculated based on the heater's wattage, diameter, and heated length. It's important to choose a density that meets your heating speed and uniformity needs without overtaxing the heater.

What maintenance practices are recommended?

Regularly check the heater for signs of wear or thermal degradation, ensure that the installation remains secure, and verify that the bore hole has not expanded due to thermal cycling. Cleaning the area of debris or lubricants after drilling also helps maintain performance.

What are common installation mistakes?

Using a bore that is too large, improper alignment during insertion, and neglecting to use any required thermal interface materials can all lead to reduced heat transfer efficiency and premature failure.

How can I troubleshoot a heater that isn't performing as expected?

Verify that the heater is receiving the correct voltage and that the bore hole fit is within tolerance. Check for any signs of insulation breakdown or corrosion on the sheath. If available, use built-in sensors (such as an internal thermocouple) to monitor temperature and compare it against expected values.

Conclusion

In summary, cartridge heaters are a versatile and efficient solution for achieving precise, localized heating in a variety of industrial applications. Their design-from the resistance wire and ceramic core to the MgO insulation and metal sheath-ensures reliable performance under demanding conditions. Whether you need a standard model or a custom-designed solution with features like internal thermocouples, distributed wattage, or dual voltage capability, SUWAIE can provide you with professional advice.
