Tubular heaters are versatile heating devices used across various industries for their efficiency, durability, and adaptability. Whether in industrial, commercial, or residential applications, these heaters serve as reliable solutions for precise temperature control. In this article, we'll explore how tubular heaters work, their applications, benefits when paired with a thermostat, their temperature range, and additional insights into their design, safety, and future trends.
How Does Tube Heater Work

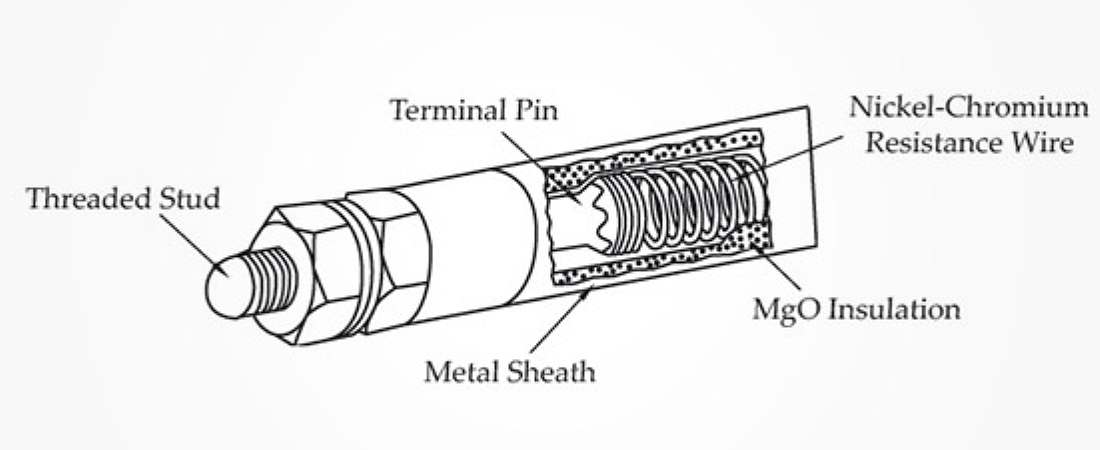

A tubular heater operates by converting electrical energy into heat through a resistive heating element, often made of nickel-chromium alloy. This element is encased in a robust metal sheath, such as stainless steel or copper, to protect it from environmental factors. Magnesium oxide powder is packed between the heating element and the sheath, providing insulation and efficient heat transfer.
The heat generated by the element is transferred to the surrounding environment via conduction, convection, or radiation, depending on the application. Designs like straight rods, U-shapes, or spirals enhance their adaptability to fit diverse needs, from direct contact heating to air circulation systems.
In terms of material efficiency, nickel-chromium alloy is commonly used because of its high resistivity and durability under high temperatures. This allows tubular heaters to achieve optimal heat output while maintaining energy efficiency. Moreover, the heat transfer is enhanced through the magnesium oxide insulation, which also provides electrical insulation, ensuring safety during operation.
Applications of Tube Heaters
- Industrial Applications
Mold Heating: Used in manufacturing processes where molds must be preheated for the production of plastic or metal parts.
Liquid Heating: They heat large tanks of liquids like oils, chemicals, or water in industries such as food processing, pharmaceuticals, and chemicals.
Air and Gas Heating: Applied in HVAC systems or industrial air systems, heating air or gases before they are pumped into specific applications.
- Commercial Uses
Preventing Condensation: Commonly used in control panels or electric cabinets to prevent moisture buildup, which could damage sensitive electronics.
Greenhouses: Tube heaters are used to regulate temperature and humidity, fostering optimal growing conditions for plants.
Space Heating: They are also effective in heating large commercial or warehouse spaces, providing a consistent and even heat distribution.
- Residential and Pet Care
Home Heating: Used in small spaces or underfloor heating systems to provide efficient heat distribution.
Pet Care: Tubular heaters are ideal for creating warm environments for reptiles or other temperature-sensitive pets.
The flexibility of tubular heaters makes them ideal for a variety of environments, ensuring reliable heating for both general and specialized applications.
SUWAIE manufacturer are a professional supplier of industrial heater products, covering industrial heater, heating element machinery, heating element machinery spare parts, heating element material and spare parts and thermocouple and thermowell. SUWAIE has won the trust and praise of many customers with its stable product quality and rich industry experience. SUWAIE can provide customized solutions according to your needs to ensure that our heaters meet your requirements. If you have any purchasing needs, you are welcome to contact us, we will provide you with the most competitive price.
Benefits of Using a Tube Heater with Thermostat
Energy Efficiency
A thermostat helps regulate the heater's operation, ensuring that the heater only operates when necessary, which reduces energy waste. In industries where precision is key, it helps maintain a stable temperature without excessive power consumption.
Extended Equipment Life
By preventing overheating, the thermostat protects the heater's internal components from thermal stress, prolonging the heater's operational life. This is particularly important in environments where equipment undergoes heavy use, such as manufacturing plants or commercial spaces.
Enhanced Safety
In environments where overheating could cause damage or pose a safety hazard, the thermostat automatically shuts off the heater once the desired temperature is reached, ensuring safe operation. This is crucial in sensitive areas like laboratories or medical facilities where strict temperature control is required.
Precision
Thermostats allow for highly accurate temperature control, which is essential in applications that require tight temperature tolerances, such as chemical processing or food storage. Digital thermostats offer even greater control, allowing users to set temperatures with precision.
For example, digital thermostats allow for programming of specific heating cycles, which can further reduce operational costs and ensure that temperatures are maintained within a set range, improving both energy savings and safety.
What Temperature Do Tubular Heaters Reach
The temperature range of a tubular heater depends on its design and application. Most tubular heaters can operate between 50°C (122°F) and 700°C (1292°F), accommodating both low-temperature warming and high-temperature industrial processes.
Low-temperature heating: In many commercial and residential applications, such as maintaining room temperature in greenhouses or heating water in small tanks, the temperature range is typically between 50°C and 150°C.
High-temperature heating: In industrial processes, like plastic molding or metal heating, heaters can reach temperatures of 500°C to 700°C, depending on the material construction.
Factors influencing the achievable temperature include:
Material: Stainless steel, Incoloy, and copper are commonly used for their ability to withstand high temperatures, with some materials like Incoloy specifically designed for high-temperature and corrosive environments.
Environment: Open-air systems cool faster than enclosed systems, which can affect the temperature output.
Design: Spiral or U-shaped designs can provide more even heat distribution, which helps maintain a consistent temperature in specific applications, like air or liquid heating.
Design and Construction of Tubular Heaters
Outer Sheath: Provides durability and resistance to environmental factors like corrosion, moisture, and physical impact. Stainless steel and copper are common choices for the outer sheath, with each offering distinct benefits. Stainless steel provides superior corrosion resistance, while copper offers excellent thermal conductivity.
Heating Element: A resistive wire (often made of nickel-chromium alloy) that generates heat when an electric current passes through it. The alloy's high resistance allows it to reach high temperatures efficiently without excessive power consumption.
Insulation: Magnesium oxide powder fills the gap between the heating element and outer sheath. This not only insulates the electrical components but also promotes efficient heat transfer, ensuring the heater works at peak efficiency.
Tubular heaters are highly customizable in terms of size, shape, and wattage. For instance, U-shaped or spiral designs are ideal for applications where uniform heat distribution is required, while straight tubular heaters are more efficient for direct contact heating.
Safety Considerations for Tubular Heaters
Overheating Protection: Use of thermal cutoffs or integrated thermostats ensures that the heater will not exceed its maximum temperature, preventing overheating and potential fire hazards.
Proper Installation: Tubular heaters should be installed in areas with adequate ventilation to prevent overheating. Ensuring that they are placed correctly-whether in tanks, ducts, or open spaces-maximizes efficiency and safety.
Maintenance: Regular checks to ensure that the heater is functioning correctly and cleaning to remove any build-up or obstructions that could impede heat transfer.
Certifications: Look for tubular heaters that comply with international safety standards such as CE, UL, or CSA. These certifications ensure that the heater meets rigorous safety requirements, especially for use in industrial or high-risk environments.
Specialized models are also available for extreme environments, such as waterproof models for wet areas, or corrosion-resistant designs for use in harsh chemical processing environments.
Comparison with Other Types of Heaters
Compared to other types of heaters, such as ceramic or quartz heaters, tubular heaters offer several distinct advantages:
Durability: Tubular heaters are typically more robust, with an extended lifespan, making them ideal for heavy-duty industrial applications.
High Temperature Tolerance: They can operate at higher temperatures (up to 700°C), making them suitable for high-temperature applications like metal heating and plastic molding, whereas other types of heaters might not reach these temperatures.
Customization: Tubular heaters are highly customizable in terms of shape, size, and power, making them suitable for a broad range of applications. Other heater types often have more limited design flexibility.
For example, compared to ceramic heaters, which are excellent for small-scale heating but can overheat quickly in larger spaces, tubular heaters provide more consistent, scalable heating for industrial environments.
Tubular heaters are versatile, reliable, and efficient heating solutions for applications ranging from industrial manufacturing to home use. Their design flexibility, safety features, and compatibility with thermostats make them a standout choice for precise temperature management. As industries continue to innovate and prioritize sustainability, tubular heaters will remain a key player in meeting evolving heating demands.
