tubular heater Filling Machine
Functions:
1.Man-machine interface control, operation and convenient control.
2.Guide tube -down control in several ways, the length , time and position sensors, fall accurate location.
3.Choose two procedures: the lower part can be clamped or not clamped to filling MgO powder .
4.Fall powder time controllable, reduce waste.
5.Terminal pin ejection optional , to prevent terminal pin bend.
6.Follow controllable,can off follow, as a fixed oscillator to use (this feature is only for follow machine).
7.Workflow monitoring equipment.
8.Equipment failure prompts.
9.Equipment each time data monitoring main action;
10.PLC I / O point monitoring.
Product Specification:
| Power supply | Single phase 220V, 50Hz. |
| Rated power | 1.5KW |
| Air supply | 5-7kg/cm2 |
| Efficiency | 6500pcs/8h (tube length 250mm) |
| Tubes at a time | fill 24pcs or 36pcs (below 10mm) |
| Filling speed | 250-350mm/min |
| Min. tube diameter | 5.5mm |
| Power Source | Electric |
| Minimum Order Quantity | 1 Piece |
| Brand | Suwaie |
Size:
Element tube Length (M) | Vibration System (PCS) | Machine Size (L*W*H)mm | Packing Size (L*W*H)mm | Gross Weight (KG) | Net Weight (KG) |
1 | 1 | 3600*1200*1050 | 3300*1050*1050 | 650 | 500 |
1.5 | 1 | 4600*1200*1050 | 4500*1050*1050 | 730 | 580 |
2 | 2 | 5600*1200*1050 | 5800*1050*1050 | 810 | 660 |
2.5 | 2 | 6600*1200*1050 | 7100*1050*1050 | 890 | 740 |
3 | 3 | 7600*1200*1050 | 8200*1050*1050 | 970 | 820 |

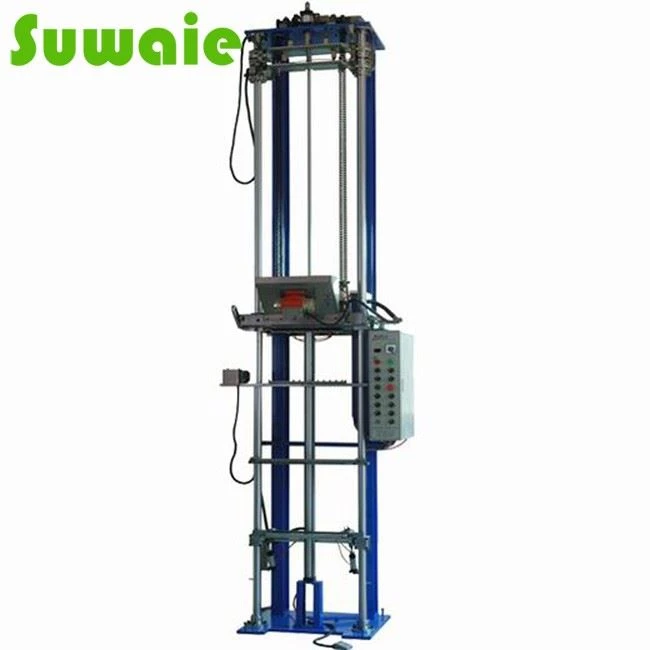

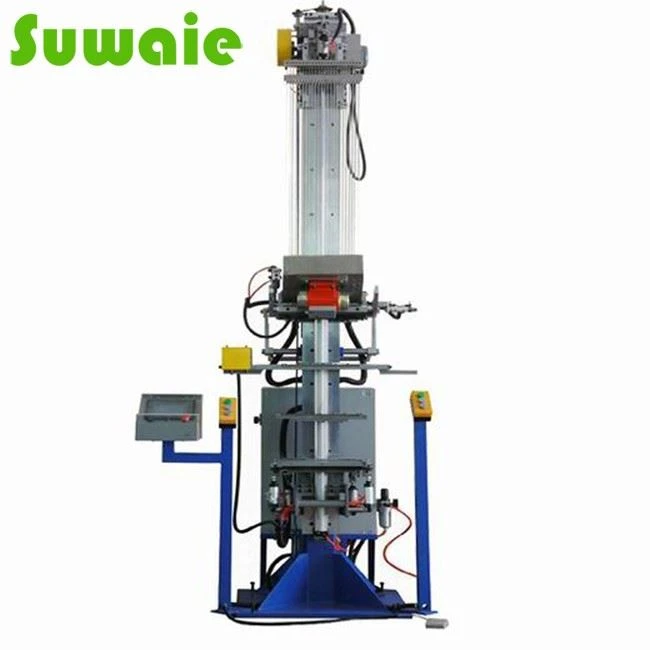

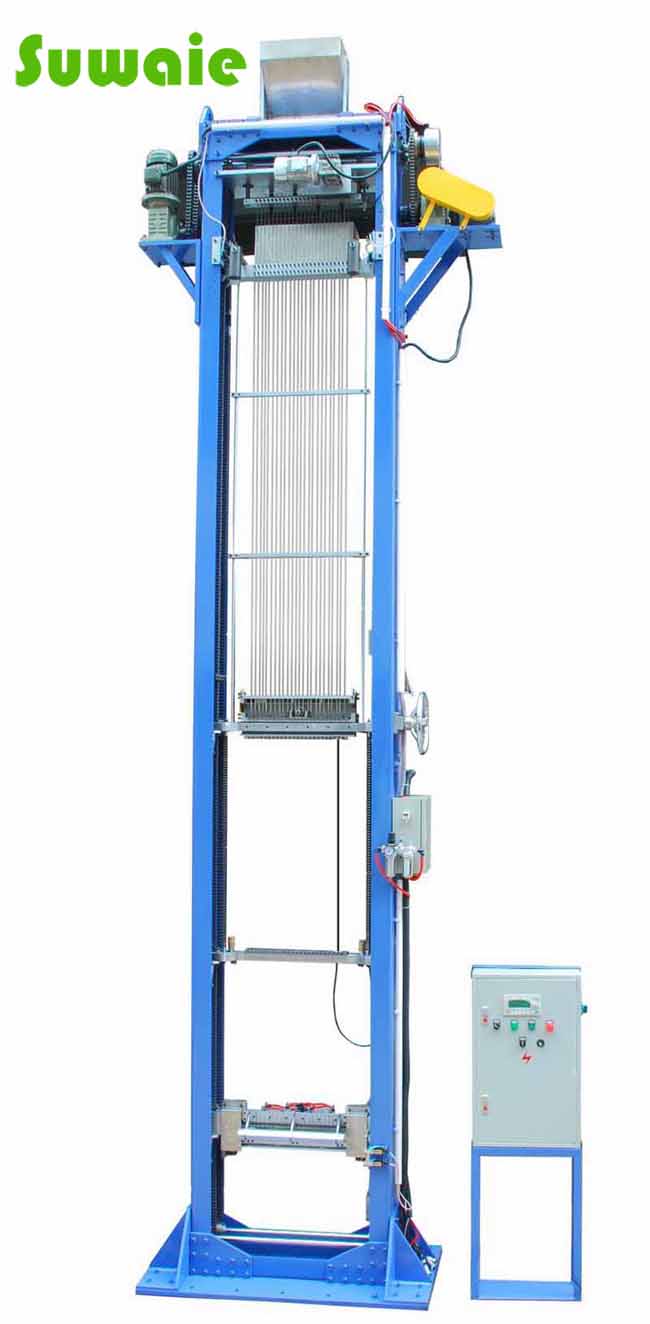

Products Picture Show
Tubular Heater Filling Machine Packing
Shipment
Main technical parameter:
1.Powder supply：
l No follow：monophase220V/50Hz、1.5kW
l Follow：monophase220V/50Hz、2.0kW
2.Air supply：0.5～0.7MPa
3.Pipe diameter：φ6～φ20（customize）
4.Pipe length：（The following is a commonly used models, other models ordered）
5.Station：12～24pcs（according pipe diameter ,customize）
6.Filling powder up speed：300～350mm/min（Adjustable Frequency）
7.Filling density：≥2.25/cm3
8.Core rod drive mode (drawing rising): cylinder drive.
9.Guide tube-driven approach (guide tube up, down): frequency motor.
10.Centering type：single guide tube.
11.Control: Human Interface.
12.Output：about8000/8h（according 24station 300mm calculate）
Shenzhen Suwaie Technology Co., Ltd. Focus on the production of Ftubular heater Filling Machine. Our company has professional equipment and engineers to provide the production and service of tubular heater Filling Machine.
