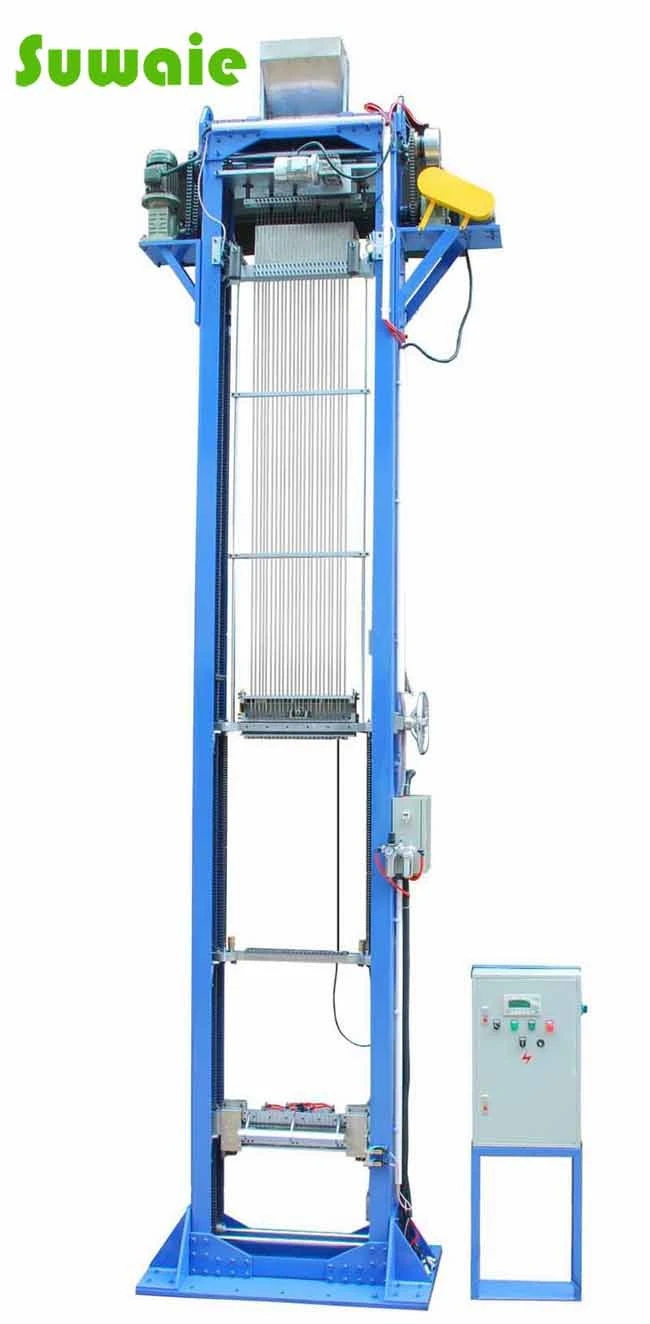

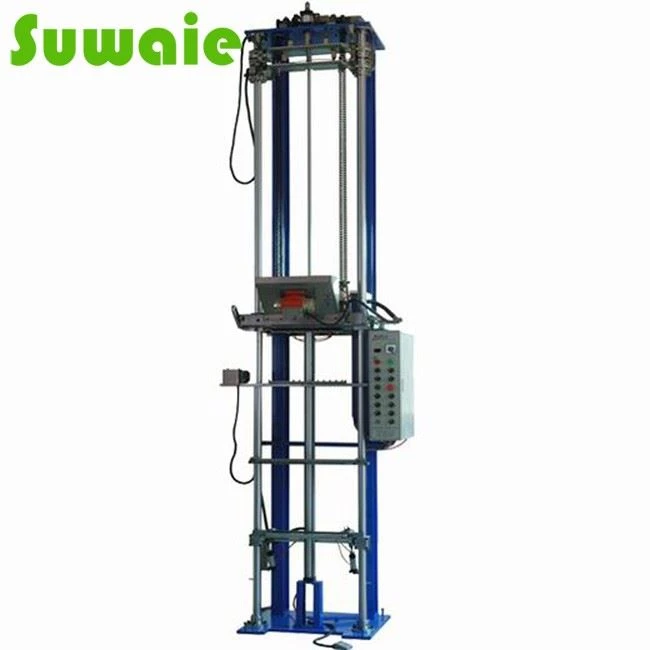

Our Tubular Heating Elements Filling Machine is an innovative solution designed specifically for efficiently filling magnesium oxide (MgO) powder into tubular heaters. Whether you're searching for high-performance tubular heaters or reliable mgo powder filling machines, this machine delivers precise, consistent filling. Its advanced controls, robust construction, and competitive filling speeds make it an ideal choice for industries worldwide.
Product Key Features
- User-Friendly Control: Equipped with an intuitive human-machine interface (HMI) that simplifies parameter settings and operational monitoring.
- Accurate Tube Lowering: Multiple control options-using length, time, and position sensors-ensure precise tube positioning and accurate MgO powder filling.
- Flexible Filling Procedures: Choose between clamped and non-clamped methods for the lower section to optimize filling performance and reduce waste.
- Adjustable Powder Dropping: Fully controllable powder drop timing minimizes magnesium oxide waste and ensures product consistency.
- Optional Terminal Pin Ejection: Prevents bending of terminal pins during the filling process, thereby maintaining the integrity of tubular heating elements.
- Real-Time Monitoring & Safety: Features integrated workflow monitoring, equipment failure alerts, and PLC I/O point supervision for safe and reliable operation.
Product Technical Specifications
|
Element Tube Length (M) |
Vibration System (PCS) |
Machine Size (L×W×H in mm) |
Packing Size (L×W×H in mm) |
Gross Weight (KG) |
Net Weight (KG) |
|
1 |
1 |
3600×1200×1050 |
3300×1050×1050 |
650 |
500 |
|
1.5 |
1 |
4600×1200×1050 |
4500×1050×1050 |
730 |
580 |
|
2 |
2 |
5600×1200×1050 |
5800×1050×1050 |
810 |
660 |
|
2.5 |
2 |
6600×1200×1050 |
7100×1050×1050 |
890 |
740 |
|
3 |
3 |
7600×1200×1050 |
8200×1050×1050 |
970 |
820 |
Product Structural Design
- Robust Construction: Built on a high-strength, vertical steel frame, the machine maintains stability under high-frequency vibrations, ensuring precision during the filling process of tubular heating elements.
- Advanced Powder Supply System: A dedicated powder hopper-with optional dust covers-minimizes MgO powder spillage, maintaining a cleaner work environment and improving operational efficiency.
- Precise Vertical Guiding: Equipped with vertical transmission systems (using chains, steel ropes, or synchronous belts) and sensors, the machine accurately adjusts the filling head's position based on tube length, enhancing both performance and filling speeds.
- Enhanced Safety & Easy Maintenance: The control cabinet includes emergency stop buttons, safety sensors, and clear indicator lights. The design facilitates easy maintenance access, ensuring smooth operation and minimal downtime.
In summary, our Tubular Heating Elements Filling Machine combines precision, flexibility, and durability to address common challenges in tubular heater production. Its innovative design not only ensures consistent filling quality and reduced material waste but also supports fast production cycles. Engineered for ease of use and maintenance, this machine is a reliable investment for both small-scale and large-scale manufacturers looking for a high-quality solution.
Why Choose Us?
At Shenzhen Suwaie Technology Co., Ltd., we pride ourselves on being a leading China tubular machines supplier specializing in the production of tubular heater filling machines.
Our Advantages Include:
- Minimum Order: Only 1 piece required
- Fast Delivery: Within 15 days
- Quality Assurance: 1-year warranty
- Lifetime Service: Comprehensive support via telephone, online video guidance, email feedback, technical training, and on-site service
- Expertise: Our professional team and state-of-the-art production facilities ensure you receive a reliable, customized solution tailored to your production needs.
If you are looking for a reliable solution to improve production efficiency and product quality, our filling machines can meet your needs. Contact us now for a free consultation and to arrange a technical training course!
FAQ
Q1: What routine maintenance is required for long-term performance?
A1: Regular cleaning of the powder hopper, periodic lubrication of moving parts, and sensor calibration are recommended to maintain accuracy and extend the machine's lifespan.
Q2: Can the machine be customized for different tube diameters or unique production requirements?
A2: Yes, our design allows for easy adjustments, and we offer customization options to meet specific tube sizes and production needs.
Q3: How does the adjustable filling speed improve production quality?
A3: By fine-tuning the filling speed, each tubular heater is filled evenly, ensuring consistent product quality and reducing material waste.
Q4: What additional safety features does the machine include?
A4: The machine is equipped with emergency stop buttons, safety sensors, and a real-time monitoring system to ensure operator and equipment safety during operation.
Q5: Is technical support available after purchase?
A5: Absolutely. We provide lifetime service through telephone support, online video guidance, and on-site assistance, ensuring smooth operation throughout the machine's lifecycle.
