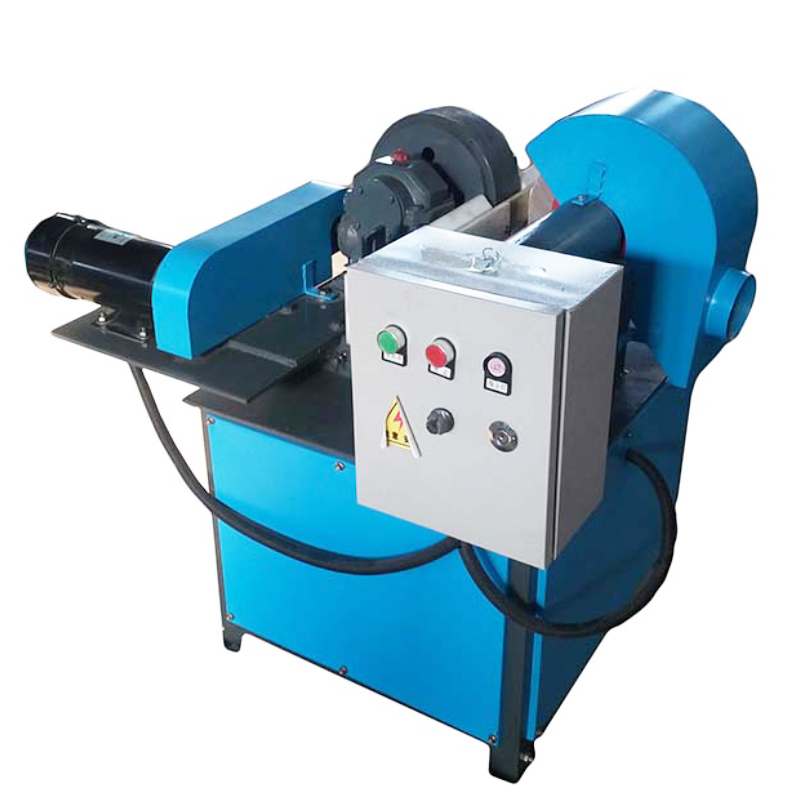

SUWAIE SW-P02 pipe polishing machine is mainly used for polishing the surface of pipes or heating elements and straight pipe drawing surface treatment. This equipment combines the principle of centerless grinding to effectively improve the surface finish of pipes and meet the high standards of various industrial applications.
Functions
1. Centerless grinding principle
SW-P02 adopts the principle of centerless grinding. By precisely controlling the grinding process, it effectively removes surface defects of pipes and makes the surface smoother. This grinding method can ensure uniform polishing effect and improve the appearance quality of the product.
2. Simple structural design
The pipe polishing machine has a simple structure, reasonable design, and is easy to maintain and operate. The simple structure not only reduces the failure rate, but also ensures the reliability of the equipment in daily use.
3. Convenient operation
The operation process of SW-P02 is simple and intuitive, and users can quickly become familiar with the various functions of the equipment, reducing training time. With simple settings, operators can quickly start polishing operations.
4. Adjustable polishing speed
The polishing speed frequency is adjustable, and users can flexibly adjust the polishing speed according to different pipe materials and processing requirements. This function enables the equipment to maintain high performance in various application scenarios.
5. Adjustable feeding speed
By adjusting the angle of the feeding wheel, users can change the feeding speed to adapt to pipes of different lengths and diameters. This flexible design ensures the wide applicability of the equipment and effectively meets various production needs.
6. Automatic shutdown protection
The pipe polishing machine is equipped with an overload automatic shutdown function, which can monitor the load during the working process, ensure that the equipment stops in time under overload conditions, and protect the safety of the machine and its internal components.
Technical Specifications
|
Model |
SW-P02 |
|
Power supply |
220V 1P 50HZ 4 KW(or Customize) |
|
Pipe diameter |
3-25mm |
|
Polishing speed |
frequency adjustable |
|
Polishing wheel speed |
2800rpm/Min |
|
Feeding wheel speed |
Max1400rpm/Min(frequency adjustable) |
|
Polishing wheel size |
300*80*25mm |
|
Guide wheel size |
100*110*25mm |
|
Dust extraction buckle size |
Diameter130mm(Bring your own vacuum cleaner) |
|
Model |
Polishing station |
Power(KW) |
Pipe length |
Size(L*W*H) |
Weight(KG) |
|
SW-P02-01 |
1 |
4 |
≥50mm |
900*900*1000mm |
175 |
|
SW-P02-02 |
2 |
5.3 |
≥150mm |
1100*900*1000mm |
300 |
|
SW-P02-03 |
3 |
6.6 |
≥350mm |
1300*900*1000mm |
450 |
|
SW-P02-04 |
4 |
7.9 |
≥350mm |
1500*900*1000mm |
700 |
|
SW-P02-08 |
8 |
9.2 |
≥350mm |
2300*900*1000mm |
1100 |
Machine Attendance
1. Regularly remove dust from the machine and keep the working environment clean, which will help the equipment to run stably.
2. Regularly lubricate moving parts such as gears and bearings to ensure the flexibility of moving parts and reduce wear.
3. Regularly check the fixing screws on the equipment. If they are loose, they should be tightened in time to ensure the safety and stability of the equipment.
4. After the work is completed, cut off the power supply and clean the machine thoroughly to ensure that the equipment is in the best condition and ready for the next use.
How To Order Polishing Machine
1.tube material
2. Max. Tube diameter and Min. Pipe diameter
3. Min.tube length ,Max. Tube length
Why Choose SUWAIE
SUWAIE is a pipe polishing machine manufacturer and supplier integrating development, design, production, sales and service. The company currently has more than 300 employees, more than 50 senior engineers, and more than 20 quality inspectors. The products are widely used in optical communications, sensors, SMT, electronics, computers, automobiles, aviation, machinery, molds, home appliances, medical and other industries.
We have obtained ISO9001-2015 and ISO/TS16949-2009 certifications, which can guarantee product quality, provide you with the fastest delivery speed, advanced management and production, and testing equipment, so that the products meet international high quality standards.
