CARTRIDGE HEATERS Cartridge Heaters are typically inserted into drilled holes to heat platens and molds or used as liquid immersion heaters.
Common Applications Aerospace Food Processing Food Service Equipment Glue Guns Heating Gases and Liquids Hot Runner Molds Hot Stamping Laminating Presses Medical Equipment Molds Packaging Equipment Plastic Extruders Plastic Molding Platens Scientific Equipment Sealing Bags Semi-Conductor Shoe Machinery

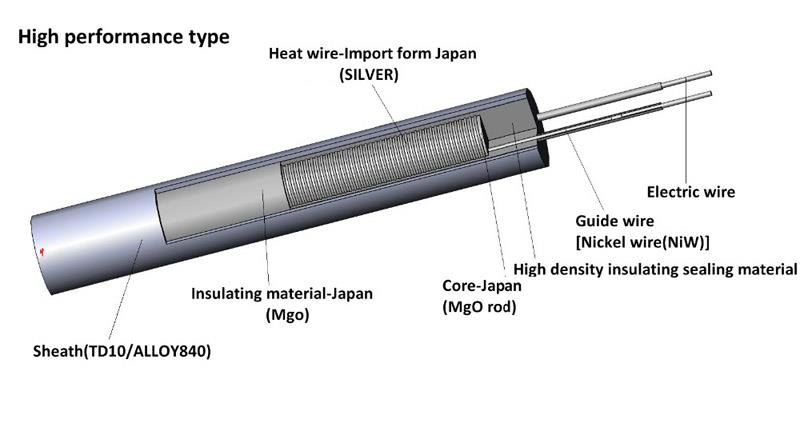

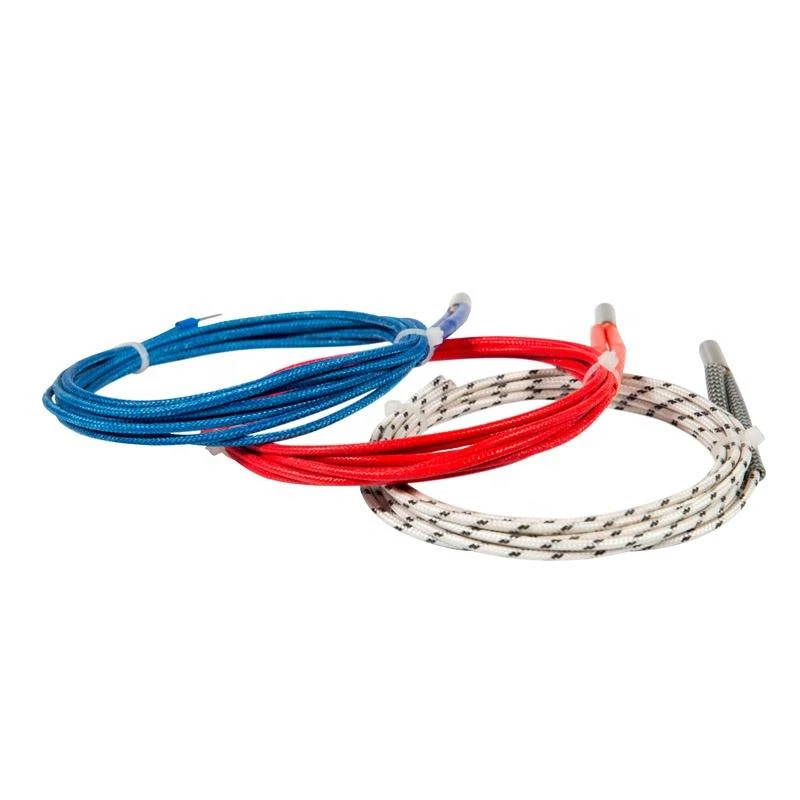

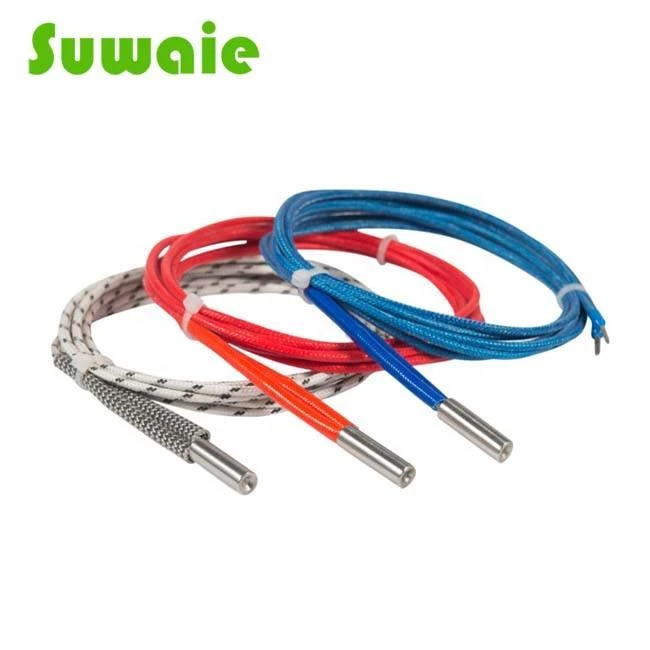

Mini High Density Cartridge Heater Structure:
A cartridge heater with an internal thermocouple is for applications where monitoring the internal temperature of the heater is necessary as over-heat protection or where material flow is close to the heater sheath as in plastic molding. 12″ high temperature (850°F/450°C) leads are standard. When ordering, specify whether the junction is grounded or ungrounded and what type of thermocouple needed. The standard position for either a grounded or ungrounded junction is at the bottom.
Specification
Product nama | Cartridge heater |
Cartridge heater diameter | 3mm, 4mm, 5mm, 6mm, 8mm, 9mm, 10mm and so on. |
Resistance wire | NiCr8020 |
Voltage | 220V |
Insulation resistance | ≥50M Ohm |
Leakage current | ≤0.5mA |
Length tolerance | ±0.5mm |
Wattage tolerance | +5%, -10% |
Input voltage | 12V, 24V,110V,220V,240V |
Material | Stainless steel |
Color | White |

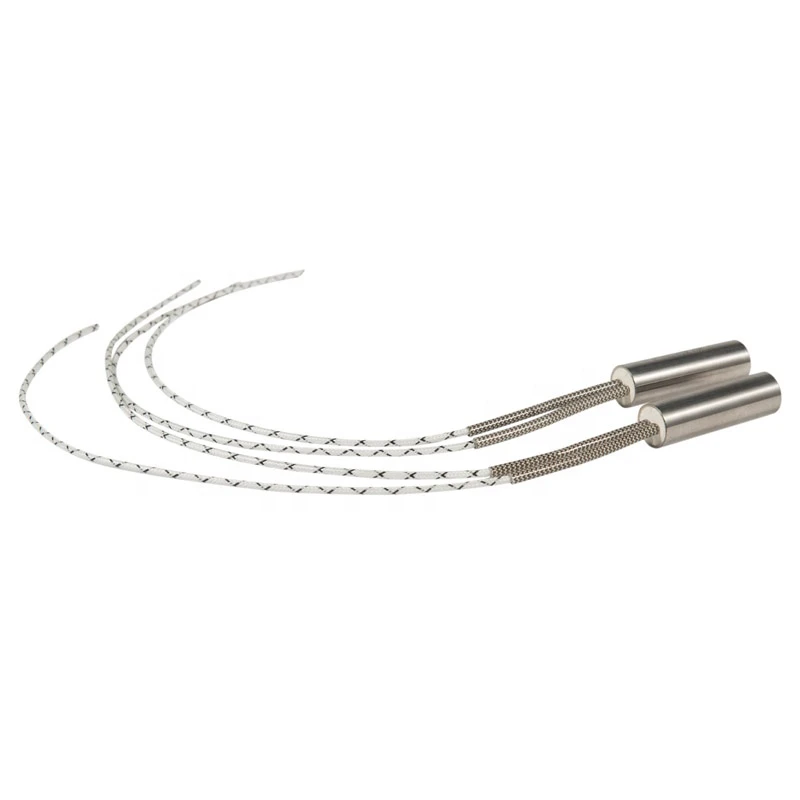

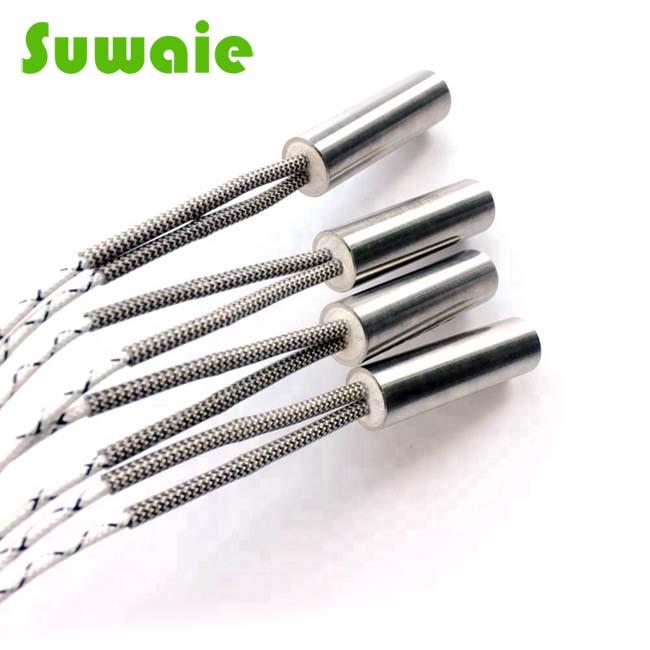

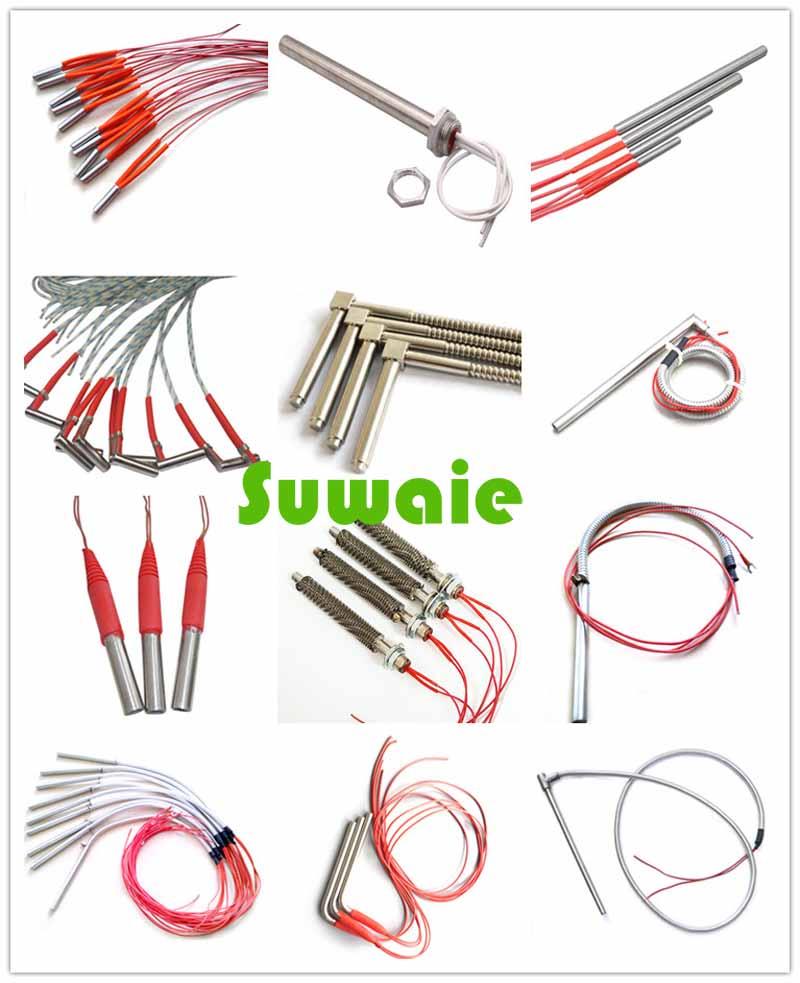

Products show

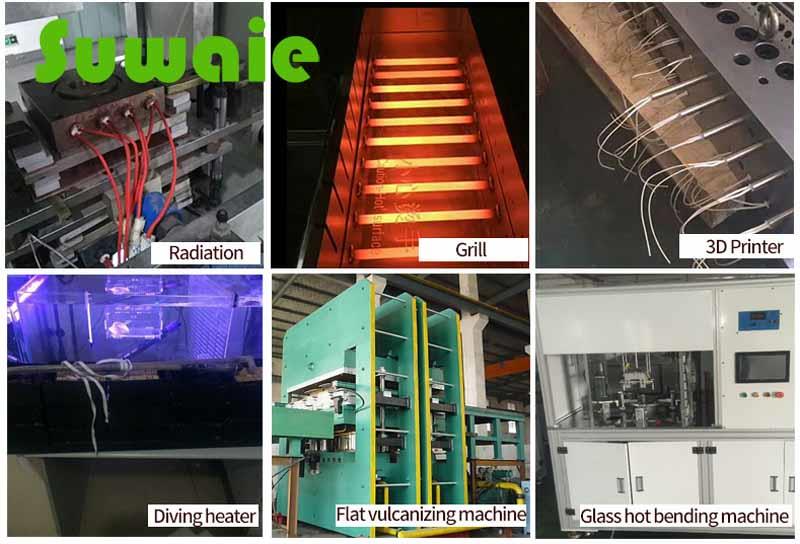

Application

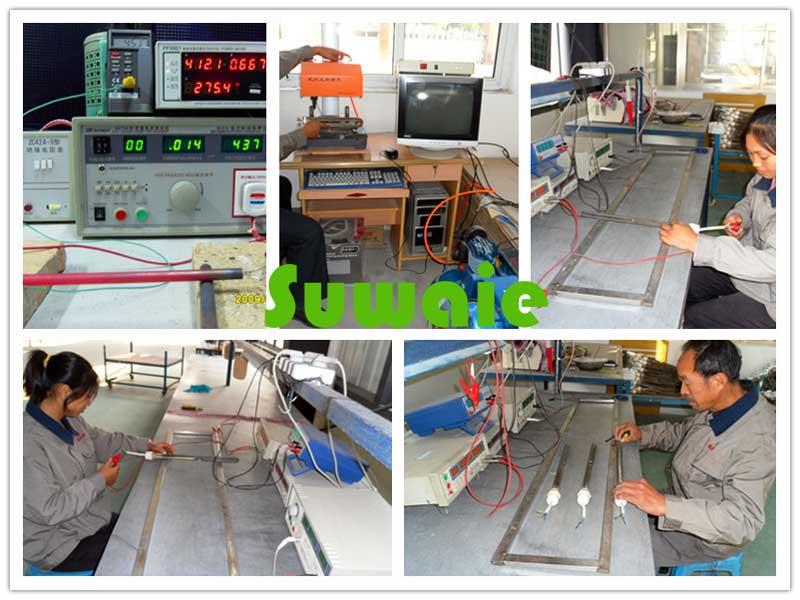

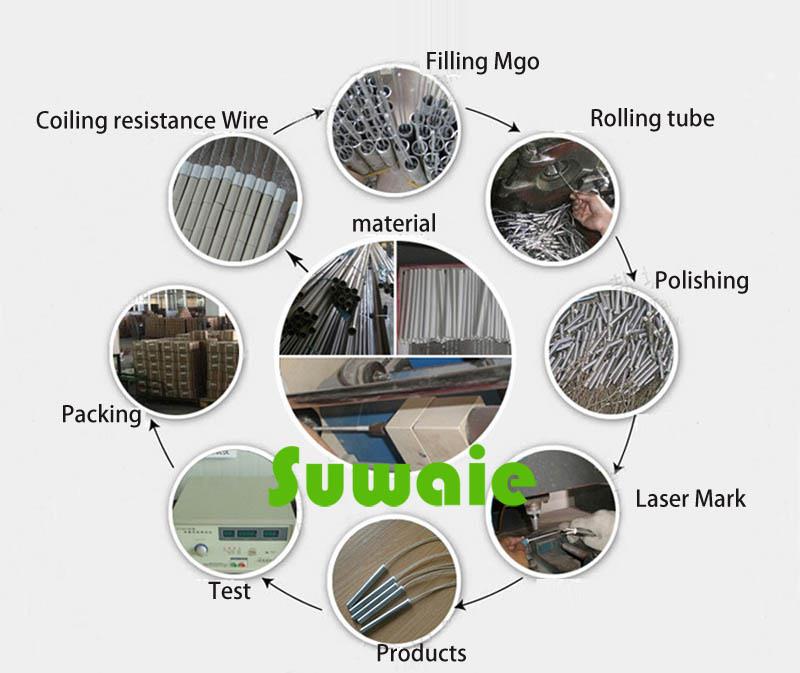

Process and test room show
Packing and shipment
Pre-sale
(1) Instruct customers to choose the most suitable electric heating element.
(2) Designing electric heating components and electric heating equipment for customers free of charge, seeking an ideal solution.
(3) The products can be designed and manufactured according to the special requirements of customers.
Sale
(1) Strict inspection before leaving the factory.
(2) Organize shipments in accordance with the contract.
After sale
(1) Immediately notify the customer of the logistics and express delivery of the goods after delivery, so that the customer can track their goods in time.
(2) Commissioning and trial operation of electric heating elements.
(3) The telephone directs the operator of the heating element.
(4) The problems encountered by domestic customers in the production process, our company's service personnel guarantee to give clear solutions within 24 hours.
FAQ
1. Q: Will you give me advice when necessary ?
A: Certainly, we will give you our professional technical advice like material type, surface finish, and drawings-making as long as you need.
2. Q: How long should your heater serves?
A: The lifespan of heater is decided by the quality of Mgo and resistance wire quality. With good resistance wire, our heating element can serve 50000 hours.
3. Q: How to handle the complains?
A: 1) During processing, if found any sizes defective, we will inform the clients and get clients approval.
2) If happen any complaints after got the goods, pls show us photos and detail complaints points, we will check with the production department and QC depart. Immediately and give solving solution with 6 hours.
4. Q: What products can supplier?
A: We can supply all industrial heaters, heating element machinery, raw material and spare parts for heating elements. thermocouples and parts
5. Q: Can you customize products?
A: Yes, products can be customized according to your requirements. MOQ will be different depending on products available or not.
6. Q: How do you guarantee the deliver time?
A: We have independent PMC department to arrange the production plan.
We have production meeting every morning to report the production progress and discuss the problems.
We will make production progress report to you every week and take some pictures for your reference, that's you can know our production progress clearly.
