Micro Electric Heaters
Introduction
1. The micro electric heaters of the company adopts imported Donghuang magnesia powder as the insulating filling medium, which has the advantages of fast heat dissipation and high insulation. The heating wire and the wire are made of raw materials imported from Germany, which greatly prolongs the service life of the heater.
2. The hot runner coil heater is wound into a shape and formed by a CNC tube bending machine and a customized special fixture. The inner hole has high dimensional accuracy, the tolerance can reach ±0.05mm, the size is stable, and the consistency is good.
3. The industrial heater coils uses the German imported mirror to detect the position of the hot end and the cold end. It has high temperature measurement accuracy and good consistency, and is especially suitable for multi-cavity hot runner systems.
Specification
Product name | hot runner heater / hot runner coil heater / hot runner nozzle heater |
Insulation Material | mgo |
Resistance Wire | Ni Cr 80-20 |
Thermocouple | Type k, J or E , wihtout |
Heating coil inner diameter | 10-38mm |
Spiral coil heater sizes | 2.2x4.2 3x3 3.4x3.4 3.5x3.5 4x4 |
Voltage | 12V,24V,36V,110V,120V,220V,240V,380V |
Power | 200W-3000W |
Advantages | high working temperature, fast heating, long life and easy installation |
Length Tolerance (Straight) | +-5% |
Wattage Tolerance | +10% (+ 5% Available Upon Request) |
Cold length | 35mm |
Order Guider
1.Cross Section
2.Circles / length/ diameter
3.Voltage
4.Wattage
5.Quantity

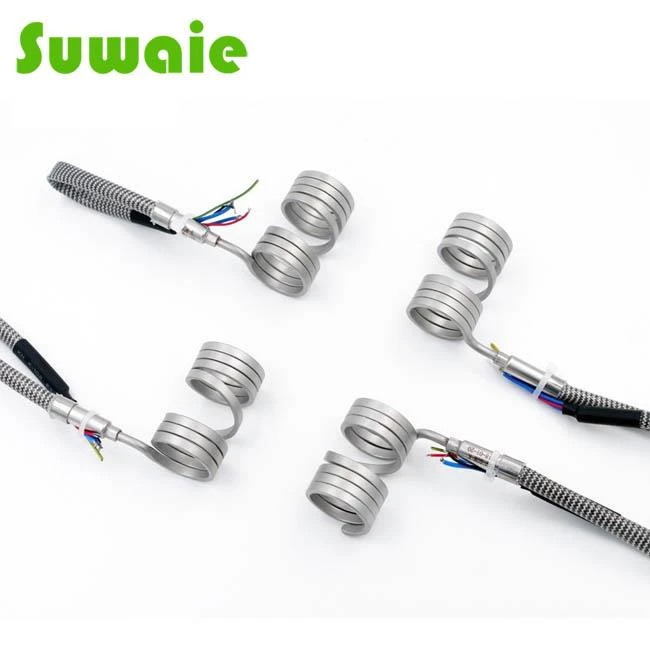

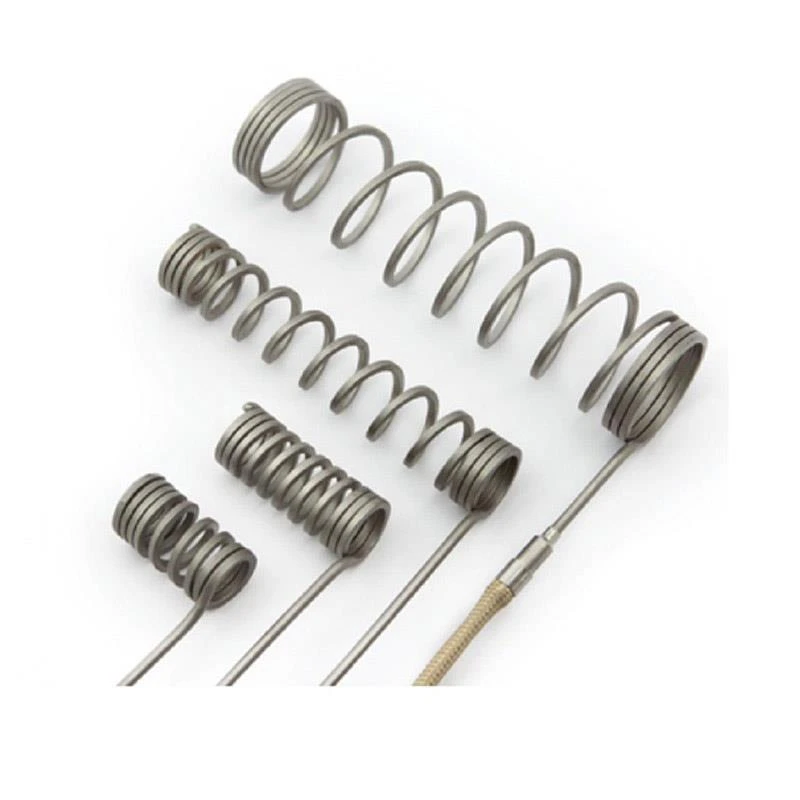

Coil Heater products picture show
Coil Heater Process show
Hot Runner Mold Heater Test room show
Packing and shipment ways
What benefit we can get from you?
1)Competitive price
2)High quality control : 100% full inspection before shipment
3)High precision, tolerance can be ± 0.005mm
4)Fast lead time (5-7days for samples, 7-30 days for mass production)
5)Non-standard//OEM//customized service provided
6)No MOQ, small QTY is acceptable.
7)ISO 9001:2003 and ISO13485:2008 certificated factory, ROHS material used
9)Professional export packing: Carton+Wooded Case, keep no scratch and damage
FAQ
1.
Q: Do you have the ability to do independent research and development?
A: Our engineering department has 5 elites, we have the R&D ability to make our products competitive. We also collect regularly customer feedback, products improvement and new product requirement.
2.
Q:What Production Equipments do we own?
A:Rolling machine,Mgo filling machine,tube cutting machine,banding machine,coiling machine,Swaging machine welding machine, etc.
3.
Q:How do I know about the production? A: We will double confirm your requirements and send you the sample before the mass production.
During the mass production, we will keep you informed of any progress. Besides, we will
do 100% quality inspection before shipment.
Shenzhen Suwaie Technology Co., Ltd. Focus on the production of Micro Electric Heaters. Our company has professional equipment and engineers to provide the production and service of Micro Electric Heaters.
