Submersible Water Heater
Product Introduction

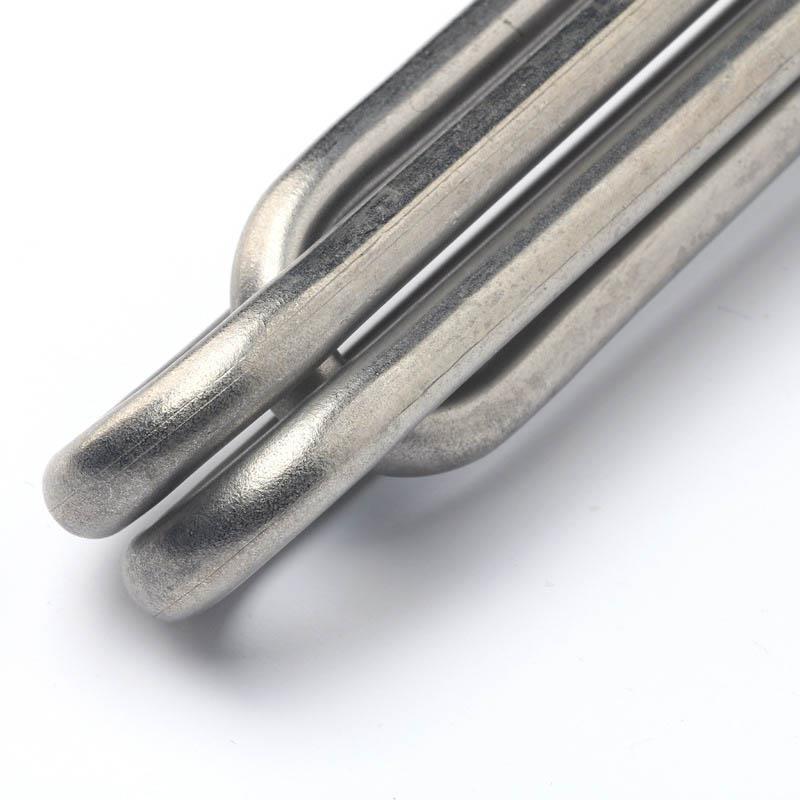

Flanged immersion heaters are commonly used in many chemical, petroleum and water based applications.Suwaie flanged heaters allow the flexibility of using many different alloys to help resist corrosion and maintain life longevity of the flanged heating element Steel flanges are typically used for lubricant oils, heavy and light oils, waxes as well as mildly corrosive liquids and low flow gas heating.Flange immersion heaters are constructed of hairpin bent tubular heater elements brazed or welded into ANSI standard flanges or plate flanges of various shapes and sizes.

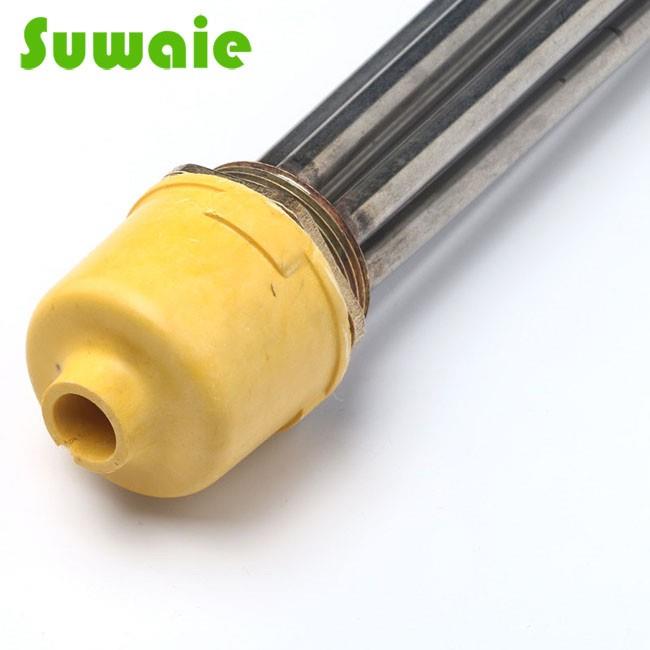

There are two connections, one thread connection, commonly used specifications size G1,G1 -1/4'',G1-1/2'', G2'' ,G1 / 2--2 inch, the second is the flange connection. Also known as the flat flange connection . Common specifications size DN50mm - DN300mm, flange electric tube flange commonly used materials are brass, stainless steel, 10 steel, pipe material commonly used 10 steel, stainless steel, copper. Common specifications, 1.5KW, 3KW, 6KW, 9KW , 12KW, 15KW, 30KW to 500kw, etc. Used for electric water boilers, electric boilers, solar energy systems, solar water tanks, chemical pools, baths, swimming pools and other places to be heated.
Rating | 220V,380V/1KW-24KW |
Pipe Material | Stainless steel or Incoloy 800,840 |
Type | Industrial heater |
Diamenter | pipe:8mm to 16mm |
Screw material | Follow spec custom |
Resistance wire | 0Cr25A15,CrNi8020 |
Terminals | Screw with nut or Cable |
Color | white |
Product applications
Process Air & Gas Heating Process Air & Gas Heating
Process Chemical Reactors Process Chemical Reactors
Boilers and Water Heating Boilers and Water Heating
Rinse Tank Heating Rinse Tank Heating
Parts Cleaning Solutions Parts Cleaning Solutions
Lube Oil & Fuel Oil Heating Lube Oil & Fuel Oil Heating
Products Show
How To Produce This Immersion Heaters
Quality Control Test Room
Packing and shipment:
Our Services
From receipt of customer order, our experienced customer service representatives process orders into our computer system for scheduled ship dates. Each customer order is analyzed to insure accuracy and customer delivery in a fast accurate manner.
All finished products are 100% tested on critical dimensions,forwarded to our packaging department for the final step in production.
Once customer orders have shipped from our factory, customers are notified by electronic mail with a detail shipping confirmation.
In addition, Sinorise offers every type of outbound shipping available including DHL, UPS, Fedex, TNT, etc.
FAQ
1. Q: Where is your factory located? How can I wisit there?
A: Our factory is located in shenzhen City, China.
2. Q: How can you ensure the HEATING ELEMENTS product quality?
A: Before shippment, all the HEATING ELEMENT have aging test. And then we also have Withstand voltage test and Insulation resistance test, ensure products can transportation safety and normal use.
3. Q: What are our after-Sales Services?
A: a) We are willing to improve the quality of the products if there is any problem with your order.
b) Repairs are free of charge if the problem is due to manufacturing defects.
c) We are willing to comply with customers' reasonable requests.
