Submersible Heating Element
Product Introduction
Flanged immersion heaters are commonly used in many chemical, petroleum and water based applications.Suwaie flanged heaters allow the flexibility of using many different alloys to help resist corrosion and maintain life longevity of the flanged heating element Steel flanges are typically used for lubricant oils, heavy and light oils, waxes as well as mildly corrosive liquids and low flow gas heating.Flange immersion heaters are constructed of hairpin bent tubular heater elements brazed or welded into ANSI standard flanges or plate flanges of various shapes and sizes.
There are two connections, one thread connection, commonly used specifications size G1,G1 -1/4'',G1-1/2'', G2'' ,G1 / 2--2 inch, the second is the flange connection. Also known as the flat flange connection . Common specifications size DN50mm - DN300mm, flange electric tube flange commonly used materials are brass, stainless steel, 10 steel, pipe material commonly used 10 steel, stainless steel, copper. Common specifications, 1.5KW, 3KW, 6KW, 9KW , 12KW, 15KW, 30KW to 500kw, etc. Used for electric water boilers, electric boilers, solar energy systems, solar water tanks, chemical pools, baths, swimming pools and other places to be heated.
Rating | 220V,380V/1KW-24KW |
Pipe Material | Stainless steel or Incoloy 800,840 |
Type | Industrial heater |
Diamenter | pipe:8mm to 16mm |
Screw material | Follow spec custom |
Resistance wire | 0Cr25A15,CrNi8020 |
Terminals | Screw with nut or Cable |
Color | white |
Product applications
Process Air & Gas Heating Process Air & Gas Heating
Process Chemical Reactors Process Chemical Reactors
Boilers and Water Heating Boilers and Water Heating
Rinse Tank Heating Rinse Tank Heating
Parts Cleaning Solutions Parts Cleaning Solutions
Lube Oil & Fuel Oil Heating Lube Oil & Fuel Oil Heating

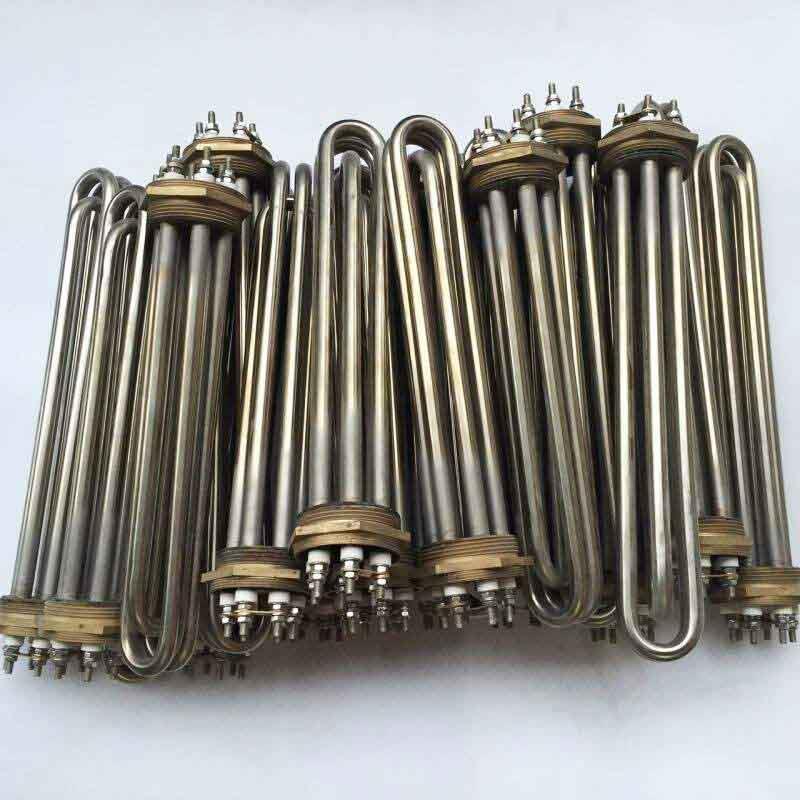

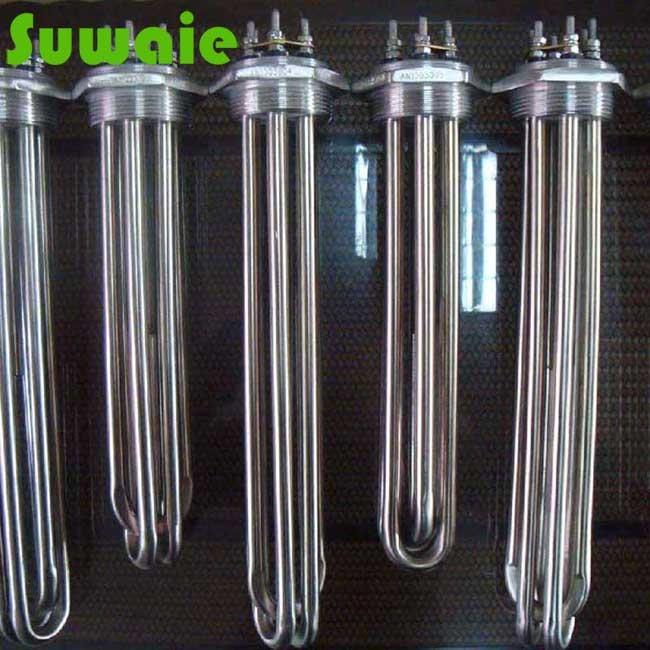

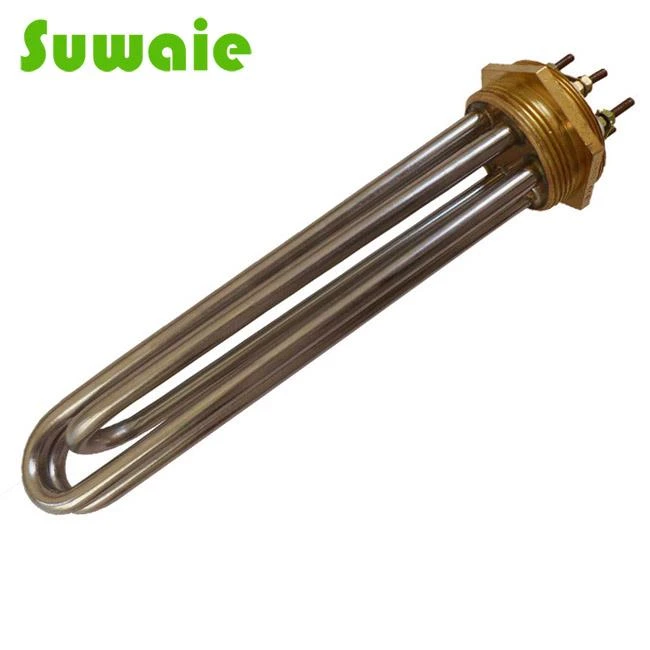

Products Show
How To Produce This Immersion Heaters
Quality Control Test Room
Packing and shipment:
Service
1. 24-hour hotline service, including counseling and technical guidance.
2. On-line service.
3. Failure maintenance of heating element.
4. Free professional technical training
5. Paid software upgrade.
6. Warranty service.
7. Engineering technical service.
FAQ
1. Q: Are you a factory or trading company?
A: We are manufacturer.
2. Q: How about the Package & Product design?
A: Based on factory original box, original design on product with neutral laser and label, original package for export carton. Custom-made is OK.
3. Q: How to proceed the order if I have logo to print?
A: First, Artwork for visual confirmation, and next is Sample picture or sending sample to you for confirmation, finally we will go to mass production.
Shenzhen Suwaie Technology Co., Ltd. Focus on the production of Submersible Heating Element. Our company has professional equipment and engineers to provide the production and service of Submersible Heating Element.
