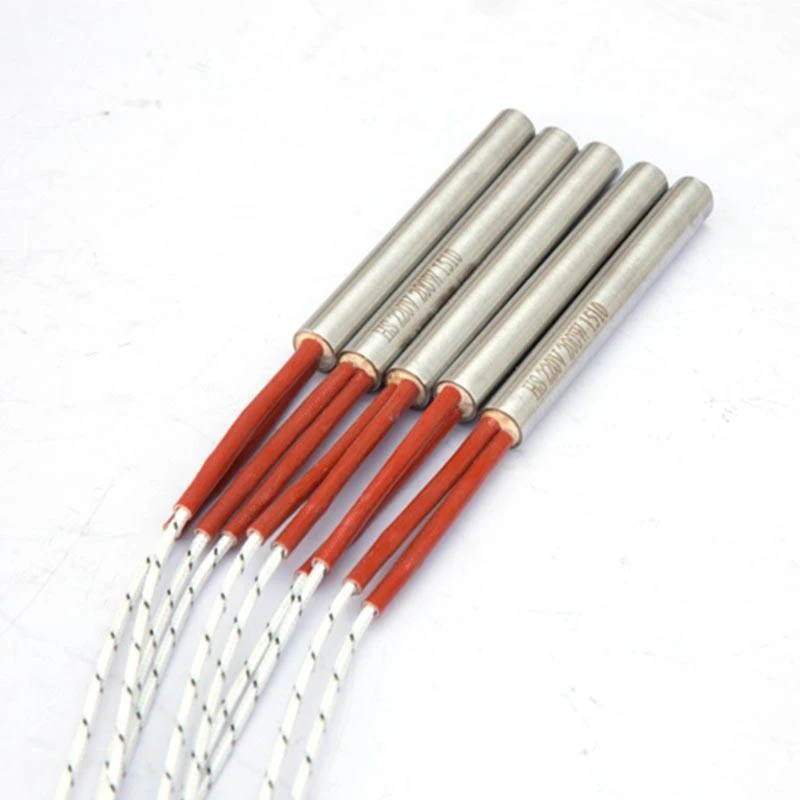

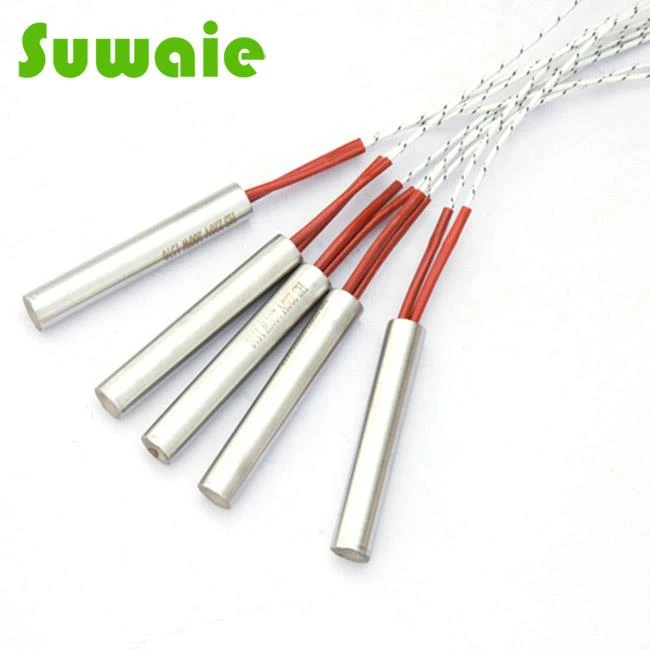

DC Pencil Heater
The Industrial Cartridge Heaters is made of metal tube (including stainless steel304, SUS316L,Incoloy 800,incoloy 840 and copper tube), and the spiral electric heating resistance wire (nickel chrome, iron chrome alloy) is uniformly distributed along the central axis of the tube, and the gap is filled and compacted with magnesium oxide powder with good thermal conductivity. The ends of the nozzle are sealed with silicone. This metal armored heating element can heat the air, metal mold and various liquids.
Cartridge Heater Parameters
Sheath material | SUS304,321,316,Incoloy800,840 |
Wattage Tolerance | +5%, -10% |
Resistance tolerance | +10%, -5% |
Voltages available | ,240V, 220V,110V,36V,24V or 12V |
Max operating temp | 800ºC |
Length tolerance | ±0.5 mm |
Diameter tolerance | -0.02mm |
Standard Cold Zone | 5-10mm |
Thermocouple Location | type J or K are available |
Lead wire length | 300mm |
Lead wire material | Glass fiber wire |
Filler material | Mgo and Mgo rod |
Resistance heating wire | NiCr8020 |
Insulation resistance (cold) | ≥ 500 MΩ |
Maximum leakage current (cold) | ≤ 0.5 mA |
Application
Cartridge Heating Element is the most important component of electric heating equipment. Its application is actually very extensive, mainly involving industries:
1. Building heating.
2. Infrared radiation heating device.
3. Heat the flowing air and still air.
4. Seawater electric distillation unit.
5. Heating device for alkali and acid.

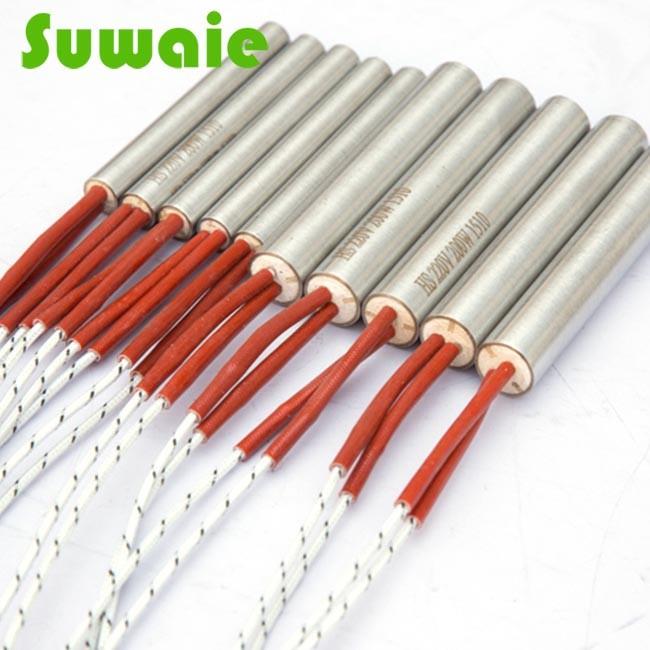

Micro Cartridge Heater Products show
Product Structure show
Pencil heater process and test working show
Packing and shipment case show
SUWIE HEATER Advantage:
12 years focusing on heating elements;
10 years technical service and proessional sales team;
9 years of independent product research and development;
OEM/ODM is available.
Obtain Obvious Advantages, Provide Best Price, Welcome To Talk More.
FAQ
1.
Q: How to Place an order?
A: Kindly pls send us you order by email, we will confirm the PI with you. we wish to know the followings: Delivery information-company name, address, phone/fax number, destination, transportation way; Product information :item number, size, quantity, or any requirements, etc.
2.
Q: Do you accept OEM manufacturing?
A: Yes! We do accept OEM manufacturing. We will quote you the exact price and make the exact heating elements to your specification and drawing.
3.
Q: What is your main product line made?
A:We mainly produce heating element,cartridge heater,hot runner heater ,industrial heater and so on.
Focus on heating element.( etc.)
Shenzhen Suwaie Technology Co., Ltd. Focus on the production of DC Pencil Heater. Our company has professional equipment and engineers to provide the production and service of DC Pencil Heater.
